Aptly name, the XENON CYM CANNON is a single beam mega power CYM color changing automated moving head searchlight.
Using a flicker free powerful 2500W – 10000W xenon lamp and a glass reflector coated with titanium and silicon produce an extraordinary light output with a very narrow beam.
A antioxidant reinforced aluminum and a galvanized steel body combined with electrostatic spray technology design results in high firmness, lightweight, heat-resistant, user-friendly, safe, high efficient, reliable and streamlined appearance.
On board or remote DMX 512 signal gives direct access to all functions including electronic control over pan and tilt movement, color change, dimmer, strobe, lamp on/off and strobe effects.
The base unit features brake-locking wheels and screw jacks for leveling and stabilizing the unit and a special mounting plate for permanent applications.
Transit locks are provided for pan and tilt movement.
With better waterproof performance and newly developed dust proof system the XENON CYM CANNON offers a longer life time in harsh outdoor environments.
The housing is weatherproofed to a certified IP55 rating.
16 BIT high resolution control over stepper motors and latest technology optical sensors ensure the highest precision on both pan and tilt movement.

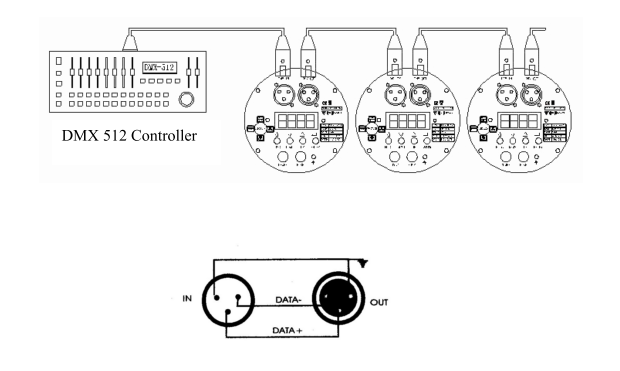

Multiple units can be synchronized also without an external DMX control desk and demo programs are available for stand-alone operation.
The outstanding XENON CYM CANNON has huge creative possibilities with live event use.
This wide range of capabilities makes the XENON CYM CANNON ideal for rental companies, as well as for fixed installations in large scale concepts.
XENON CYM CANNON can be used for permanent, semi-permanent and temporary applications in entertainment, architectural, military, law enforcement and commercial installations.
- POWER REQUIREMENTS: 50-60HZ, 220V/45A 380V/15A or 3~208V/45A for American Market
- POWER CONSUMPTION: 2500W: 2800W, 50-60 HZ 220V/10A (others available) 3000W: 3500W, 50-60 HZ 220V/18A (others available) 4000W: 4500W, 50-60 HZ 220V/18A (others available) 5000W: 5500W, 50-60 HZ 220V/26A (others available) 6000W: 6500W, 50-60 HZ 220V/36A (others available) 7000W: 7500W, 50-60 HZ 220V/36A (others available) 10000W: 10500W 50-60 HZ 380V/3X16A (others available)

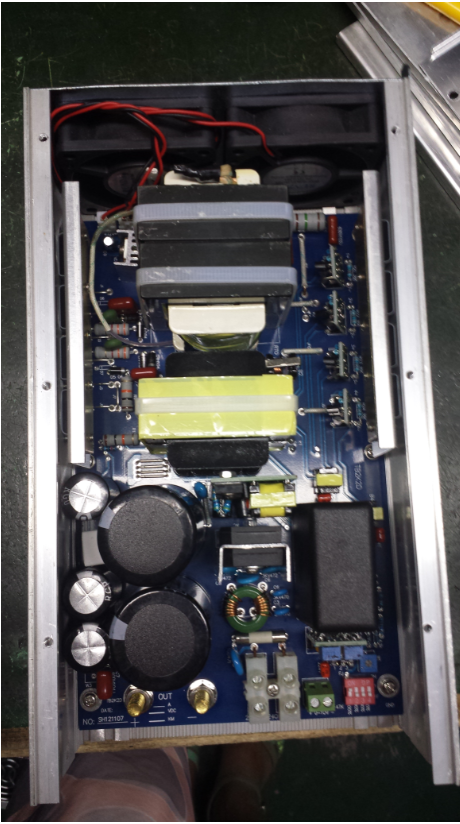

- POWER SUPPLY: Electronic ballast

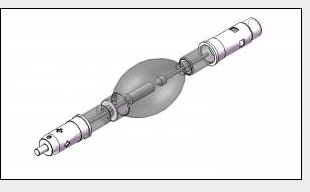

- LIGHT SOURCE: XENON 2500W,- 10000W, 500-1000 hours
- LUMENS: 2500W: 110,000 3000W: 125,000 4000W: 155,000 5000W: 250,000 6000W: 310,000 7000W: 360,000 10000W:560,000
- CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
- DMX: 14 channels (Please see below)
- DISPLAY: LCD for menu generation (Please see below)
- DMX CONNECTOR: 3 pin
- PAN: 360°
- TILT: 210°
- ZOOM: 0° to 23°

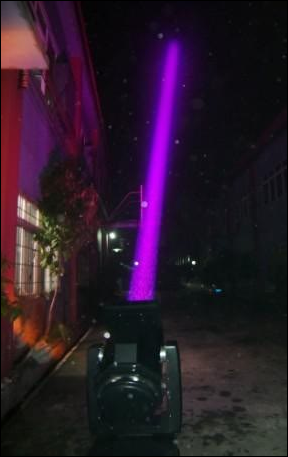

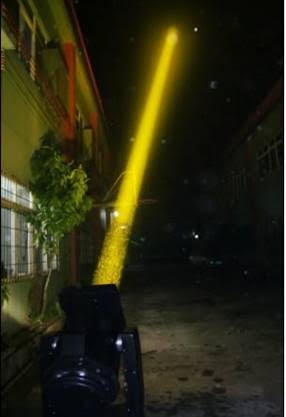

- COLOR CHANGING SYSTEM: CYM color mixing thanks to 3 coated tempered glass flags that can either appear one at a time or mixed 2 at a time or 3 at a time. So we can get colors as follows: 1.White; 2.Cyan; 3.Mgenta; 4.Yellow; 5.Cyan+Magenta; 6.Cyan+Yellow; 7.Magenta+Yellow; 8.Cyan+Magenta+Yellow.
- REFLECTOR: Glass reflector coated with titanium and silicon
- FRONT LENS: 260 mm in diameter
- BEAM ANGLE: 0° to 23°
- DIMMER: Linear 0-100%
- BLACK-OUT: Instant access
- STROBE: Electronic
- MOTORS: 5 high quality IP55 stepper motors
- FANS: 6 high quality IP55 fans
- VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels.
- IP RATING: IP 55 http://articulight.com/pdf/IP_RATINGS.pdf
- GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm (29.13 X 30.71 X 59.84 inches)
- NET WEIGHT: 2500W: 60KG (132 lbs.) 3000W: 70KG (154 lbs.) 4000W: 82KG (180 lbs.) 5000W: 84KG (185 lbs.) 6000W: 85KG (187 lbs.) 7000W: 86KG (190 lbs.) 10000W:100KG (220 lbs.)
- HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.

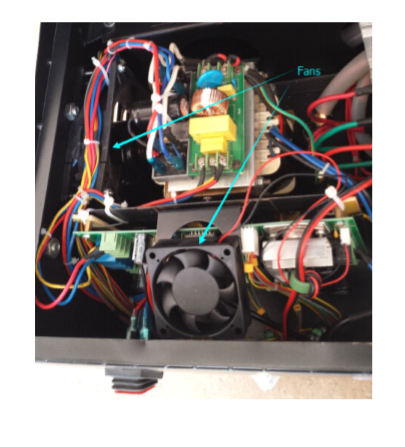

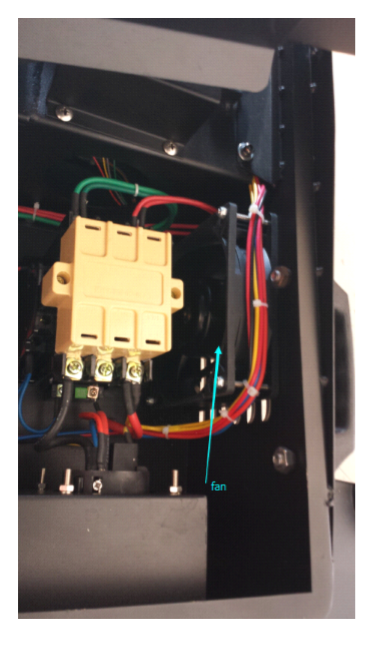

- HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
- WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- CARRYING HANDLES: 4 for ease of transportation
- TRANSPORT WHEELS: 4 with lock mechanism
- MOUNTING: Universal
- MODELS: 2500W: XCC-2500 3000W: XCC-3000 4000W: XCC-4000 5000W: XCC-5000 6000W: XCC-6000 7000W: XCC-7000 10000W: XCC-10000
TECHNCIAL SPECIFICATIONS
- POWER REQUIREMENTS: 50-60HZ, 220V/45A 380V/15A or 3~208V/45A for American Market
- POWER CONSUMPTION: 2500W: 2800W, 50-60 HZ 220V/10A (others available) 3000W: 3500W, 50-60 HZ 220V/18A (others available) 4000W: 4500W, 50-60 HZ 220V/18A (others available) 5000W: 5500W, 50-60 HZ 220V/26A (others available) 6000W: 6500W, 50-60 HZ 220V/36A (others available) 7000W: 7500W, 50-60 HZ 220V/36A (others available) 10000W: 10500W 50-60 HZ 380V/3X16A (others available)
- POWER SUPPLY: Electronic ballast
- LIGHT SOURCE: XENON 2500W,- 10000W, 500-1000 hours
- LUMENS: 2500W: 110,000 3000W: 125,000 4000W: 155,000 5000W: 250,000 6000W: 310,000 7000W: 360,000 10000W:560,000
- CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
- DMX: 14 channels (Please see below)
- DISPLAY: LCD for menu generation (Please see below)
- DMX CONNECTOR: 3 pin
- PAN: 360°
- TILT: 210°
- ZOOM: 0° to 23°
- COLOR CHANGING SYSTEM: CYM color mixing thanks to 3 coated tempered glass flags that can either appear one at a time or mixed 2 at a time or 3 at a time. So we can get colors as follows: 1.White; 2.Cyan; 3.Mgenta; 4.Yellow; 5.Cyan+Magenta; 6.Cyan+Yellow; 7.Magenta+Yellow; 8.Cyan+Magenta+Yellow.
- REFLECTOR: Glass reflector coated with titanium and silicon
- FRONT LENS: 260 mm in diameter
- BEAM ANGLE: 0° to 23°
- DIMMER: Linear 0-100%
- BLACK-OUT: Instant access
- STROBE: Electronic
- MOTORS: 5 high quality IP55 stepper motors
- FANS: 6 high quality IP55 fans
- VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels.
- IP RATING: IP 55 http://articulight.com/pdf/IP_RATINGS.pdf
- GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm (29.13 X 30.71 X 59.84 inches)
- NET WEIGHT: 2500W: 60KG (132 lbs.) 3000W: 70KG (154 lbs.) 4000W: 82KG (180 lbs.) 5000W: 84KG (185 lbs.) 6000W: 85KG (187 lbs.) 7000W: 86KG (190 lbs.) 10000W:100KG (220 lbs.)
- HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.
- HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
- WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- CARRYING HANDLES: 4 for ease of transportation
- TRANSPORT WHEELS: 4 with lock mechanism
- MOUNTING: Universal
- MODELS: 2500W: XCC-2500 3000W: XCC-3000 4000W: XCC-4000 5000W: XCC-5000 6000W: XCC-6000 7000W: XCC-7000 10000W: XCC-10000

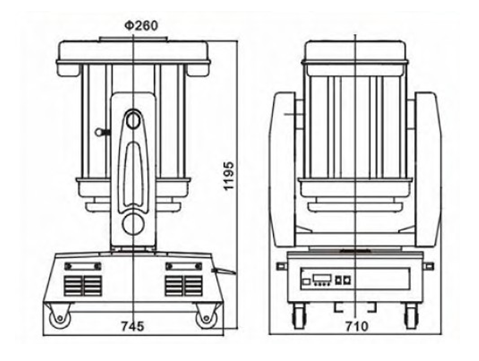

DIMENSIONS

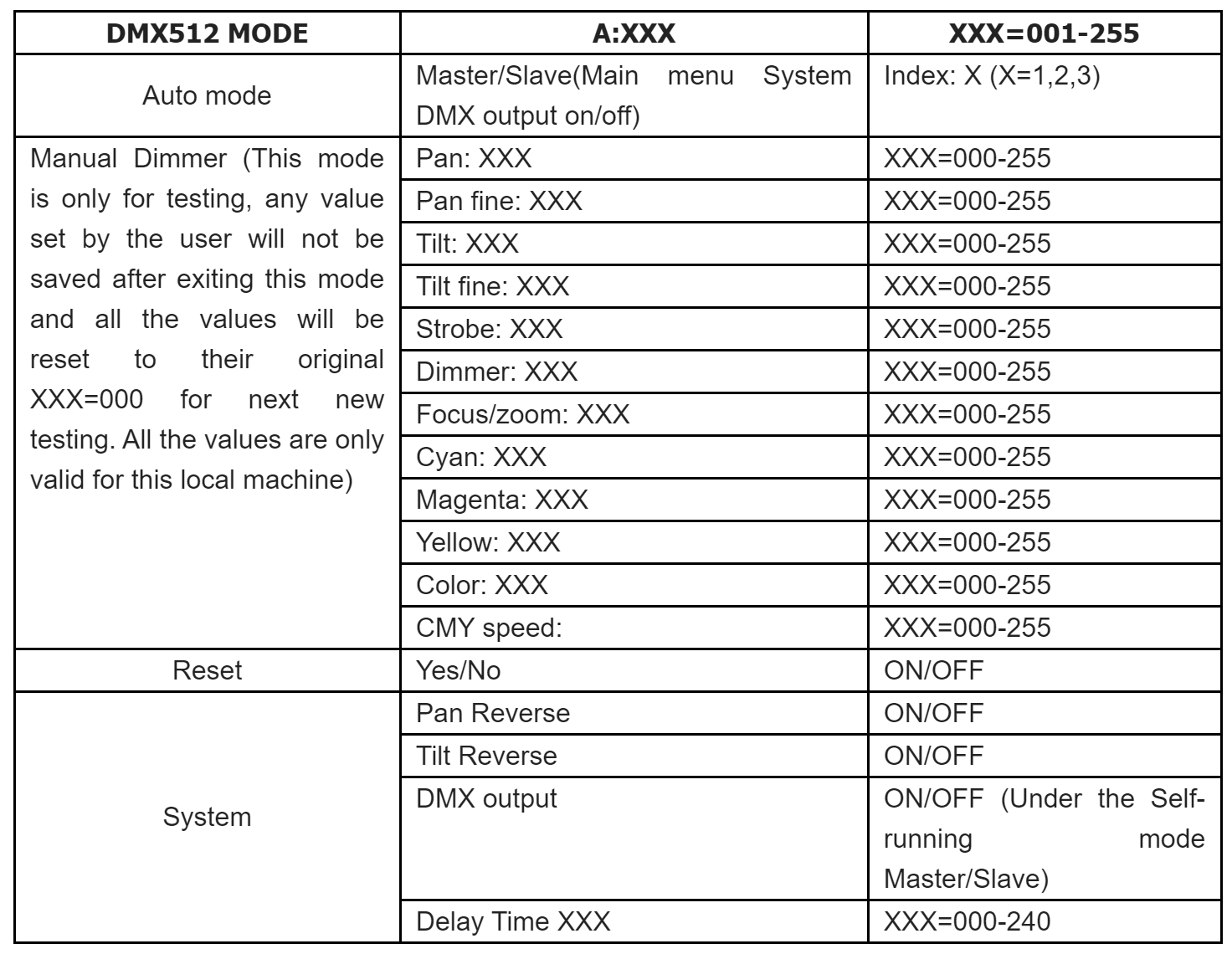

MODES
SPECIAL PAINT

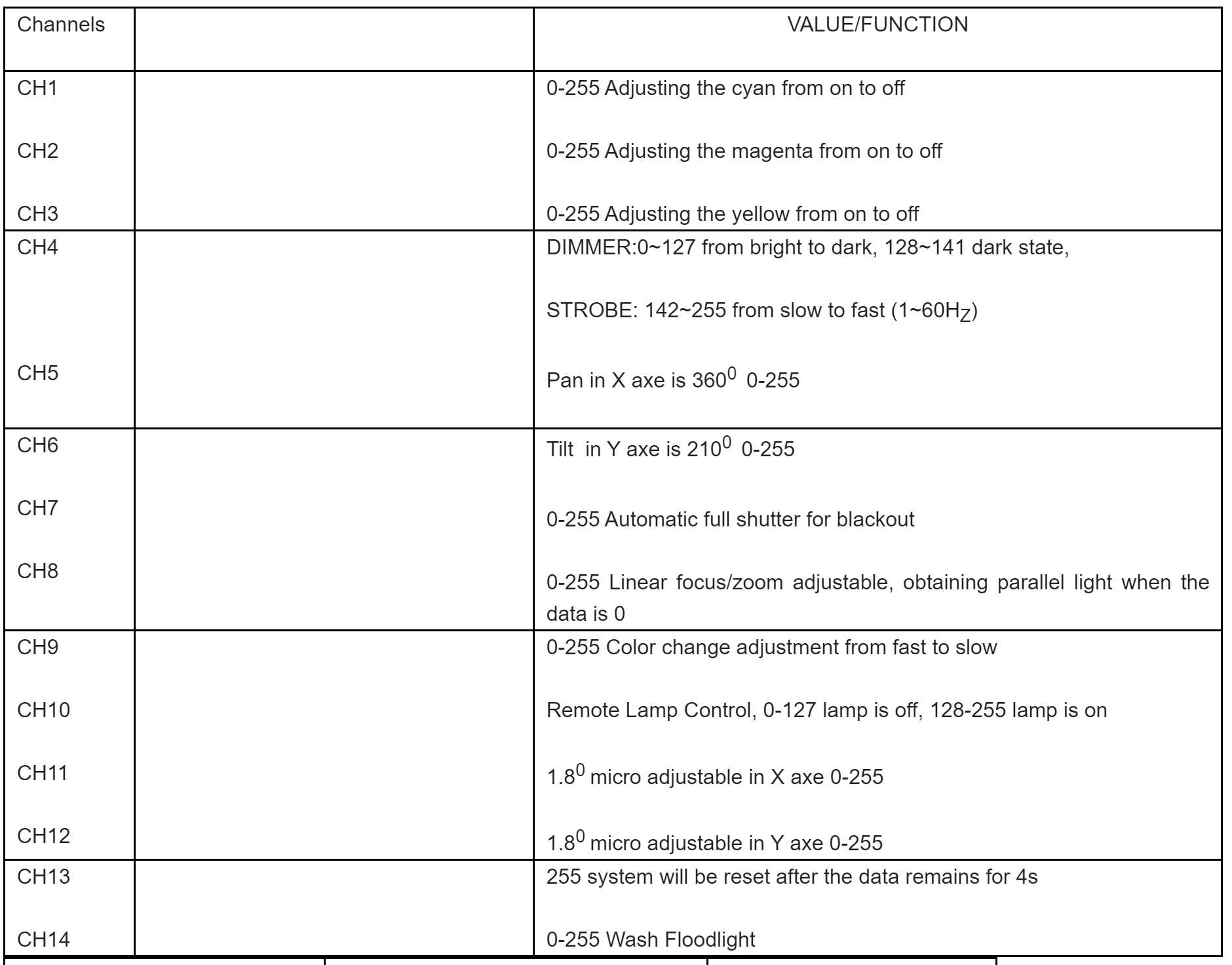

DMX CHANNELS
- When you want to get a “wow factor”

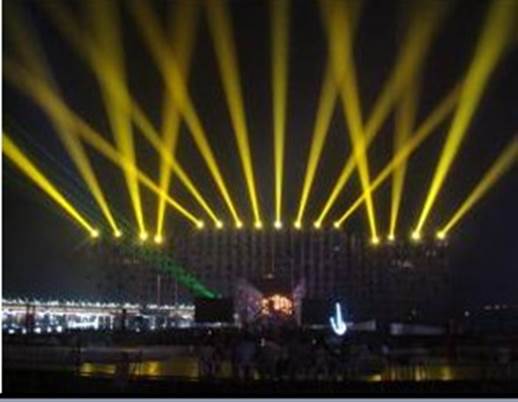

- Create new looks as if wrapped up in a geometric pattern of glittering, powerful beams of light moving in perfect coordination
- Programming synchronized and non-synchronized chasing patterns via DMX makes the light beams even more dramatic
- Performance, Reliability and Durability are great
- Environmentally friendly
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
