Product Description

Aptly name, the MAX 7 MK2 is a single beam mega power CYM automated moving head searchlight.

Using a flicker free powerful 7000w xenon lamp and a glass reflector coated with titanium and silicon produce an extraordinary light output with a very narrow beam.

A  antioxidant reinforced aluminum and a galvanized steel body combined with electrostatic spray technology design results in high firmness, lightweight, heat-resistant, user-friendly, safe, high efficient, reliable and streamlined appearance.

On board or remote DMX 512 signal gives direct access to all functions including electronic control over pan and tilt movement, color change, dimmer, strobe, lamp on/off and strobe effects.

The base unit features brake-locking wheels and screw jacks for leveling and stabilizing the unit and a special mounting plate for permanent applications.

Transit locks are provided for pan and tilt movement.

desc-img

With better waterproof performance and newly developed dust proof system the MAX 7 MK2 offers a longer life time in harsh outdoor environments.

The housing is weatherproofed to a certified IP55 rating.

16 BIT high resolution control over stepper motors and latest technology optical sensors ensure the highest precision on both pan and tilt movement.

Multiple units can be synchronized also without an external DMX control desk and demo programs are available for stand-alone operation.

The outstanding MAX 7 MK2 has huge creative possibilities with live event use.

This wide range of capabilities makes the MAX 7 MK2 ideal for rental companies, as well as for fixed installations in large scale concepts.

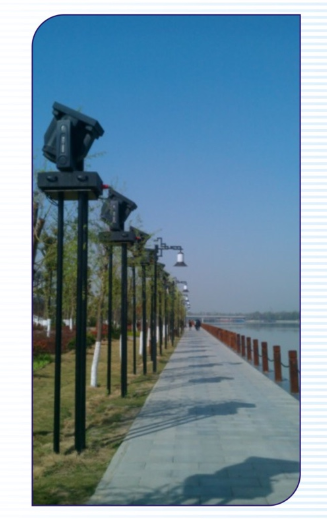

MAX 7 MK2 can be used for permanent, semi-permanent and temporary applications in entertainment, architectural, military, law enforcement and commercial installations.

  • POWER REQUIREMENTS: 50-60HZ, 220V/35A 380V/15A or 3~208V/25A for American Market
  • POWER CONSUMPTION: 7500W
  • POWER SUPPLY: Electronic ballast

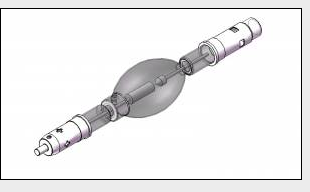

  • LIGHT SOURCE: OSRAM XSTAGE SHORT ARC XENON 7000W, 500 hours
  • LUMENS: 360,000
  • CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
  • DMX: 14 channels (Please see below)
  • DISPLAY: LCD for menu generation (Please see below)
  • DMX CONNECTOR: 3 pin
  • PAN: 360°
  • TILT: 210°
  • ZOOM: 0° to 23°
  • COLOR CHANGING SYSTEM: CYM color mixing thanks to 3 coated tempered glass flags that can either appear one at a time or mixed 2 at a time or 3 at a time. So we can get colors as follows:
  • 1.White; 2.Cyan; 3.Mgenta; 4.Yellow; 5.Cyan+Magenta; 6.Cyan+Yellow; 7.Magenta+Yellow; 8.Cyan+Magenta+Yellow.
  • REFLECTOR: Glass reflector coated with titanium and silicon
  • FRONT LENS: 260 mm in diameter
  • AM ANGLE: 0° to 23°
  • DIMMER: Linear 0-100%
  • BLACK-OUT: Instant access
  • STROBE: Electronic
  • MOTORS: 5 high quality IP55 stepper motors
  • FANS: 6 high quality IP55 fans
  • VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels.
  • IP RATING: IP 55

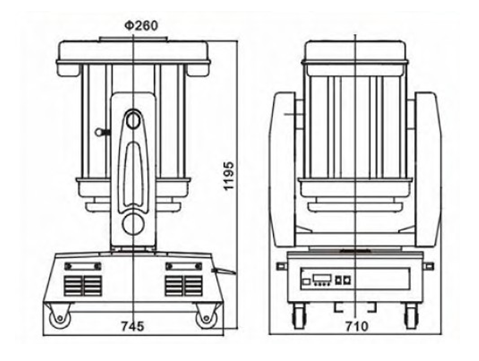

  • DIMENSIONS: Please see below.
  • GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm (29.13 X 30.71 X 59.84 inches)
  • NET WEIGHT: 105KG (231lbs)
  • GROSS WEIGHT: 155KG (341lbs)
  • HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.
  • HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
  • WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
  • AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
  • CARRYING HANDLES: 4 for ease of transportation
  • TRANSPORT WHEELS: 4 with lock mechanism
  • MOUNTING: Universal
  • MODEL: MAX-7-MK2
tab-img
tab-img

TECHNICAL SPECIFICATIONS

  • POWER REQUIREMENTS: 50-60HZ, 220V/35A 380V/15A or 3~208V/25A for American Market
  • POWER CONSUMPTION: 7500W
  • POWER SUPPLY: Electronic ballast
  • LIGHT SOURCE: OSRAM XSTAGE SHORT ARC XENON 7000W, 500 hours
  • LUMENS: 360,000
  • CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
  • DMX: 14 channels (Please see below)
  • DISPLAY: LCD for menu generation (Please see below)
  • DMX CONNECTOR: 3 pin
  • PAN: 360°
  • TILT: 210°
  • ZOOM: 0° to 23°
  • COLOR CHANGING SYSTEM: CYM color mixing thanks to 3 coated tempered glass flags that can either appear one at a time or mixed 2 at a time or 3 at a time. So we can get colors as follows:
  • 1.White; 2.Cyan; 3.Mgenta; 4.Yellow; 5.Cyan+Magenta; 6.Cyan+Yellow; 7.Magenta+Yellow; 8.Cyan+Magenta+Yellow.
  • REFLECTOR: Glass reflector coated with titanium and silicon
  • FRONT LENS: 260 mm in diameter
  • AM ANGLE: 0° to 23°
  • DIMMER: Linear 0-100%
  • BLACK-OUT: Instant access
  • STROBE: Electronic
  • MOTORS: 5 high quality IP55 stepper motors
  • FANS: 6 high quality IP55 fans
  • VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels.
  • IP RATING: IP 55
  • DIMENSIONS: Please see below.
  • GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm (29.13 X 30.71 X 59.84 inches)
  • NET WEIGHT: 105KG (231lbs)
  • GROSS WEIGHT: 155KG (341lbs)
  • HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.
  • HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
  • WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
  • AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
  • CARRYING HANDLES: 4 for ease of transportation
  • TRANSPORT WHEELS: 4 with lock mechanism
  • MOUNTING: Universal
  • MODEL: MAX-7-MK2

DMX CHANNELS

tab-img

MODES

tab-img
More Details
Special Paint

Special paint designed to protect and shield the projector’s housing, components and electronic, electric and PCB parts in harsh environments such as driving rain, snow, dust, humidity, rust and corrosion.

This paint can strengthen the electronic circuits and components of moisture-proof, anti-fouling, mold-proof, waterproof, prevents salt, fog ability and to prevent the erosion of solder joints and conductor.

Has electromagnetic interference shielding and eliminates and prevents short circuits.

Improves the insulation performance of the circuit boards.

Strengthens the electronic circuits and components of moisture-proof, anti-fouling, mold proof and waterproof.

Prevents salt/fog ability, to prevent the erosion of solder joints and conductor.

Has electromagnetic interference shielding and eliminates and prevents short circuit and improves the insulation performance of the circuit board.

All the electronic circuits board are painted with it.

Marketing Examples

When you want to come up with something more dramatic

When you want to get a “wow factor”

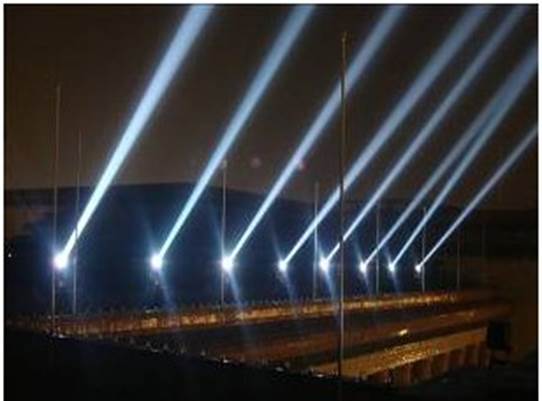

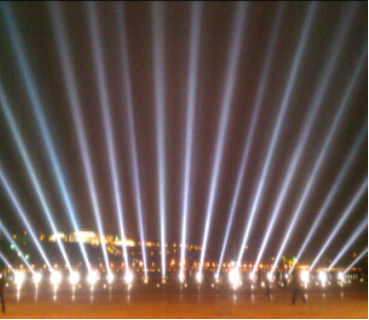

Create new looks as if wrapped up in a geometric pattern of glittering, powerful beams of light moving in perfect coordination

Programming synchronized and non-synchronized chasing patterns via DMX makes the light beams even more dramatic

Performance, Reliability and Durability are great Environmentally friendly
