Product Description

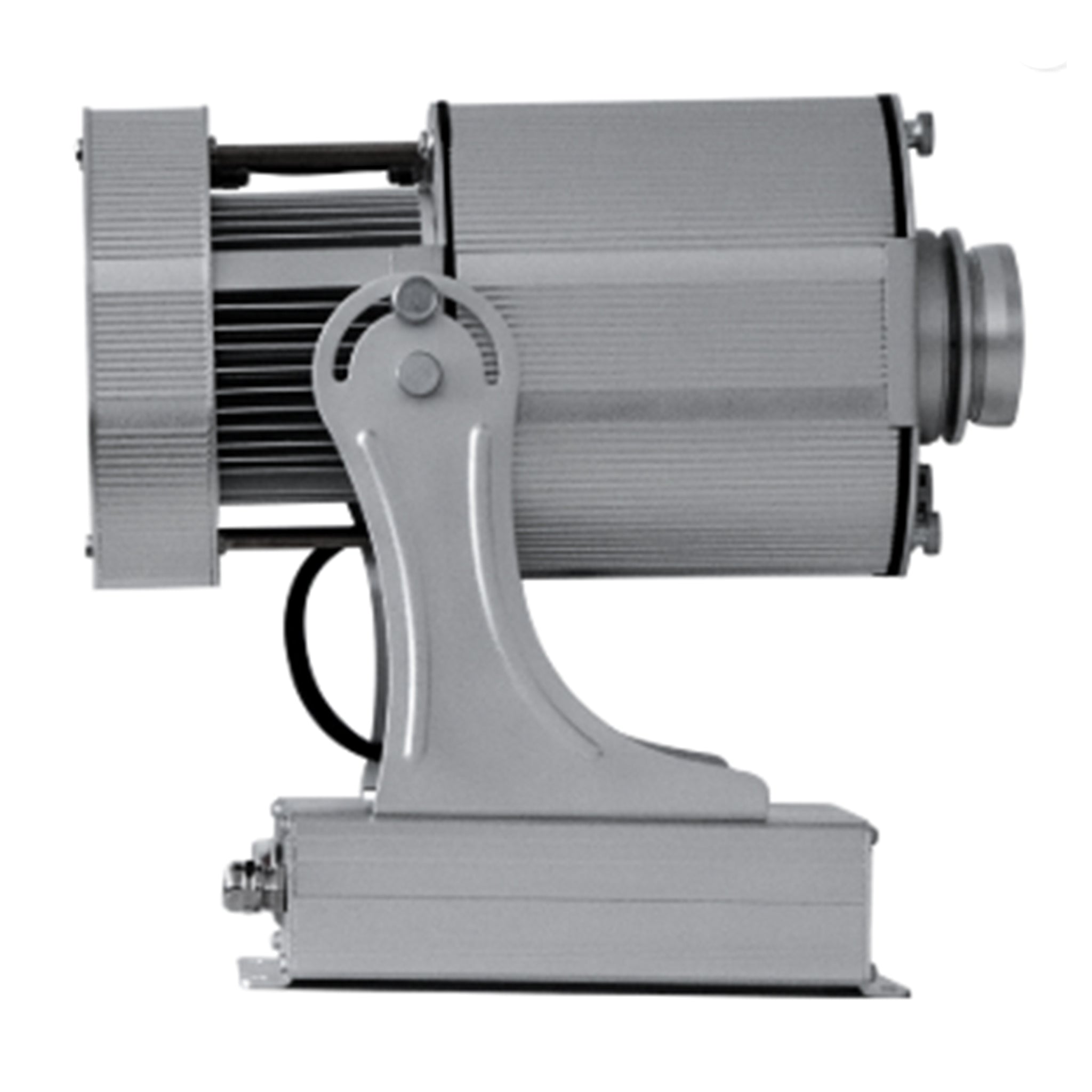

The VISIONER XT 100 is a newly developed LED rotating & static image projector with a few versions designed for outdoor and indoor use. It is driven by a 100W single LED chips precise packed on pure copper board. LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.

desc-img

The VISIONER XT 100 rivals classic high power discharge projectors at much lower cost, power consumption and size.

The VISIONER XT 100 is easy to install and operate and is light weight housed in a stylish and functional housing.

  • Solid State LED Lighting (SSL) Technology
  • High power single LED chips precise packed on pure copper board.
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Optional Remote Controller
  • HD Lensing system
  • Image projection
  • Static and Rotating options
  • Innovative multi-purpose mounting options
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
  • Warranty: 1 year.
  • Power requirement: AC100V-240V, 50/60Hz
  • Power Supply: Auto Switching Power Supply: integrated in the fixture
  • Power Consumption: Maximum 105W
  • LEDs: CREE 100W High power single LED chips precise packed on pure copper board
  • Lumens: 13,500
  • Color Temperature: 6500K
  • LED Lifespan: >30,000 hours
  • Beam Angles: 38°, 26°
  • Gobo Size: Outer Diameter: 54mm, Inner Diameter: 42.5mm
  • Lenses: F70, F125
  • Image Sizes:
    • 38°/F70,  Image ratio: 1:0.63. If the projection distance is 10 feet then the image size will be about 6.3  ft.
    •  26°/F125,  Image ratio: 1:0.43. If the projection distance is 10 feet then the image size will be about 4.3  ft.

  • Static Gobo: Yes
  • Rotating Gobo: Yes. Can be also used to position the image to where needed.
  • Gobo Replacement: Easy by a magnet
  • Focus: Manual in the front like camera
  • Lensing Multiple HD lensing system
  • Thermal management system ensures long life of LEDs

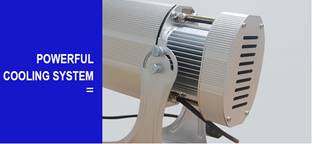

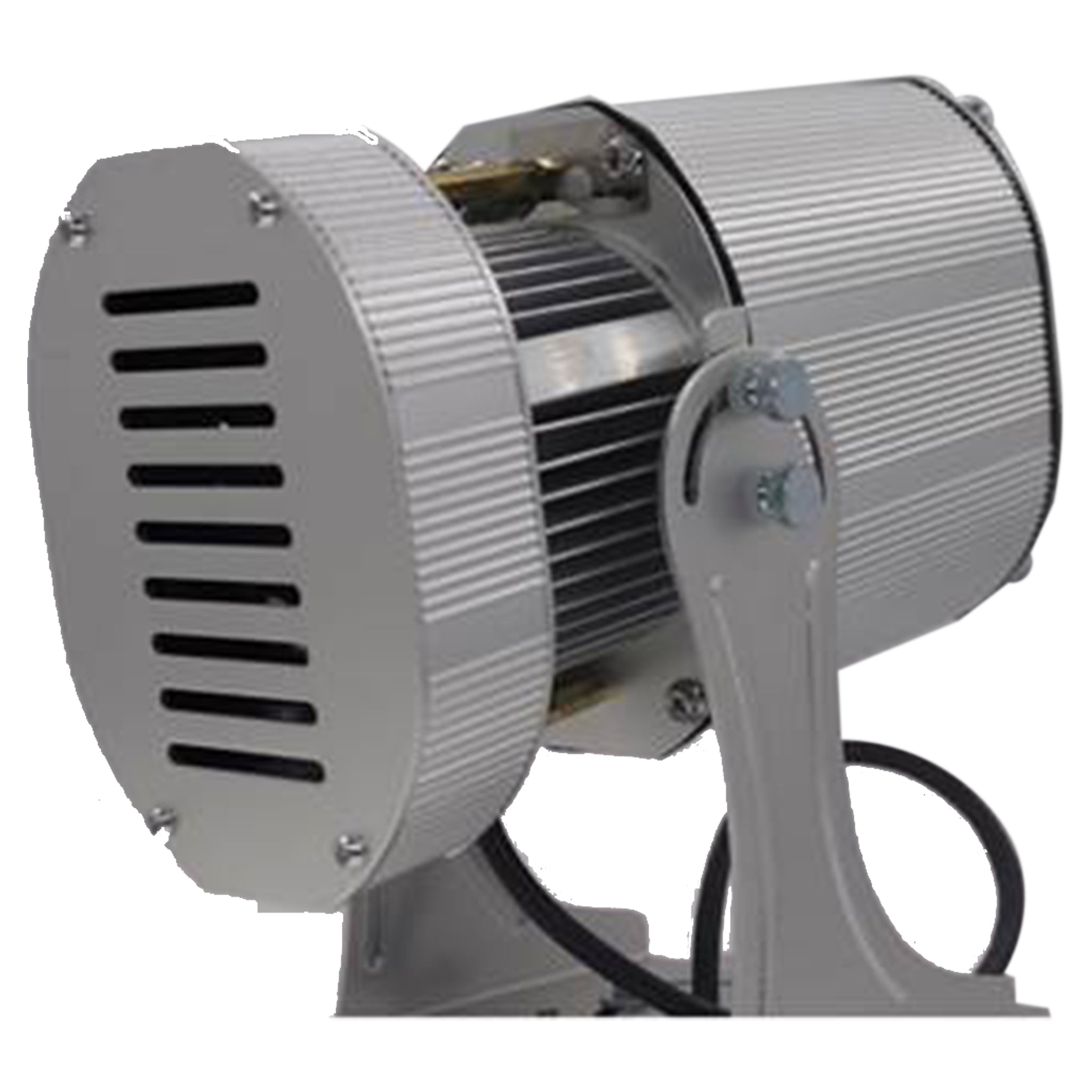

  • Cooling: Heat sink and extruded fins for heat dissipation and 2 fans
  • Housing:  Extruded Aluminum  AL1070
  • Housing Color: Silver
  • IP Rating: IP65
  • Listing: CE, ROHS, REACH, SGS, BV
  • Working Operating Temperature: -20°C – 50°C  (-4°F –122°F)

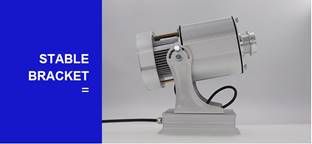

  • Mounting: Please see below
  • Digital Remote Control: Yes. Optional at additional cost. Please see below.

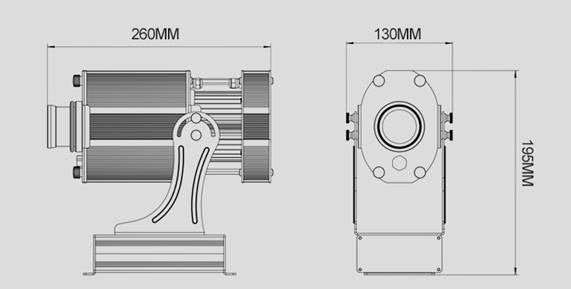

  • Net Dimensions: 260mm x 130mm x 195mm (10.24” x 5.12” x 7.68”). Please see below.
  • Gross Dimensions:  350 X 290 X160 mm (13.78” X 11.41” X 6.30”)
  • Net Weight: 3kgs (6.6lbs);
  • Gross Weight: 5kgs (11lbs);
  • Models: VXT-100-F70, VXT-100-F125. More models below.
tab-img

FEATURES

  • Solid State LED Lighting (SSL) Technology
  • High power single LED chips precise packed on pure copper board.
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Optional Remote Controller
  • HD Lensing system
  • Image projection
  • Static and Rotating options
  • Innovative multi-purpose mounting options
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
  • Warranty: 1 year.

TECHNICAL SPECIFICATIONS

  • Power requirement: AC100V-240V, 50/60Hz
  • Power Supply: Auto Switching Power Supply: integrated in the fixture
  • Power Consumption: Maximum 105W
  • LEDs: CREE 100W High power single LED chips precise packed on pure copper board
  • Lumens: 13,500
  • Color Temperature: 6500K
  • LED Lifespan: >30,000 hours
  • Beam Angles: 38°, 26°
  • Gobo Size: Outer Diameter: 54mm, Inner Diameter: 42.5mm
  • Lenses: F70, F125
  • Image Sizes:
    • 38°/F70,  Image ratio: 1:0.63. If the projection distance is 10 feet then the image size will be about 6.3  ft.
    •  26°/F125,  Image ratio: 1:0.43. If the projection distance is 10 feet then the image size will be about 4.3  ft.

  • Static Gobo: Yes
  • Rotating Gobo: Yes. Can be also used to position the image to where needed.
  • Gobo Replacement: Easy by a magnet
  • Focus: Manual in the front like camera
  • Lensing Multiple HD lensing system
  • Thermal management system ensures long life of LEDs
  • Cooling: Heat sink and extruded fins for heat dissipation and 2 fans
  • Housing:  Extruded Aluminum  AL1070
  • Housing Color: Silver
  • IP Rating: IP65
  • Listing: CE, ROHS, REACH, SGS, BV
  • Working Operating Temperature: -20°C – 50°C  (-4°F –122°F)
  • Mounting: Please see below
  • Digital Remote Control: Yes. Optional at additional cost. Please see below.
  • Net Dimensions: 260mm x 130mm x 195mm (10.24” x 5.12” x 7.68”). Please see below.
  • Gross Dimensions:  350 X 290 X160 mm (13.78” X 11.41” X 6.30”)
  • Net Weight: 3kgs (6.6lbs);
  • Gross Weight: 5kgs (11lbs);
  • Models: VXT-100-F70, VXT-100-F125. More models below.

REMOTE

tab-img
More Details
Applications

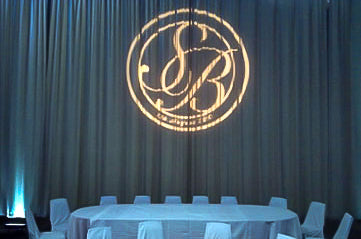

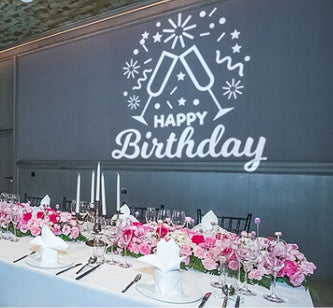

The VISIONER XT 100 is ideal for store fronts, kiosks, window displays, POP displays, indoor advertising, or architectural, entertainment and hospitality venues. Corporations and franchises are discovering the marketing power of this projector, and how it can save time, cut costs, and project a strong image to capture consumer attention.

The VISIONER XT 100 is the foundation of a new mass-market and POP marketing system that broadens creative options, improves efficiency, and lowers overall production costs. It can be used together with existing forms of POP advertising, display and promotional graphics - or replace them.

The VISIONER XT 100 can help centralize or decentralize corporate advertising and promotional campaigns. Create a consistent message at several locations - or tailor art to suit specific needs. It is ideal for ceilings, walls, truss and floor or where you need that extra punch to cut through ambient light. If you want to lift your image, the VISIONER XT 100 is the answer.

The VISIONER XT 100 projector is equipped with an LED light source designed to work for the full lifetime of the projector so there is no need for a replacement lamp thus saving you a lot of money not only on the lamp replacement but on maintenance as well.

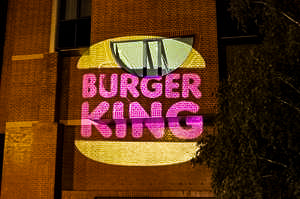

Marketing Examples

Industrial and business enterprises are increasingly aware of the opportunities and benefits brought by the projection of navigation, hazard and safety signs.

Replacing painted safety labels or stickers because they wear off easily in heavy traffic, restoration is time consuming and its cost is high.

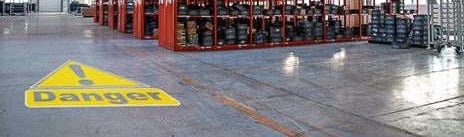

The VISIONER XT 100 is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.

Due to continuous improvements, specifications and prices may change without prior notice

For Specials and Quantity Discounts, please contact us.
