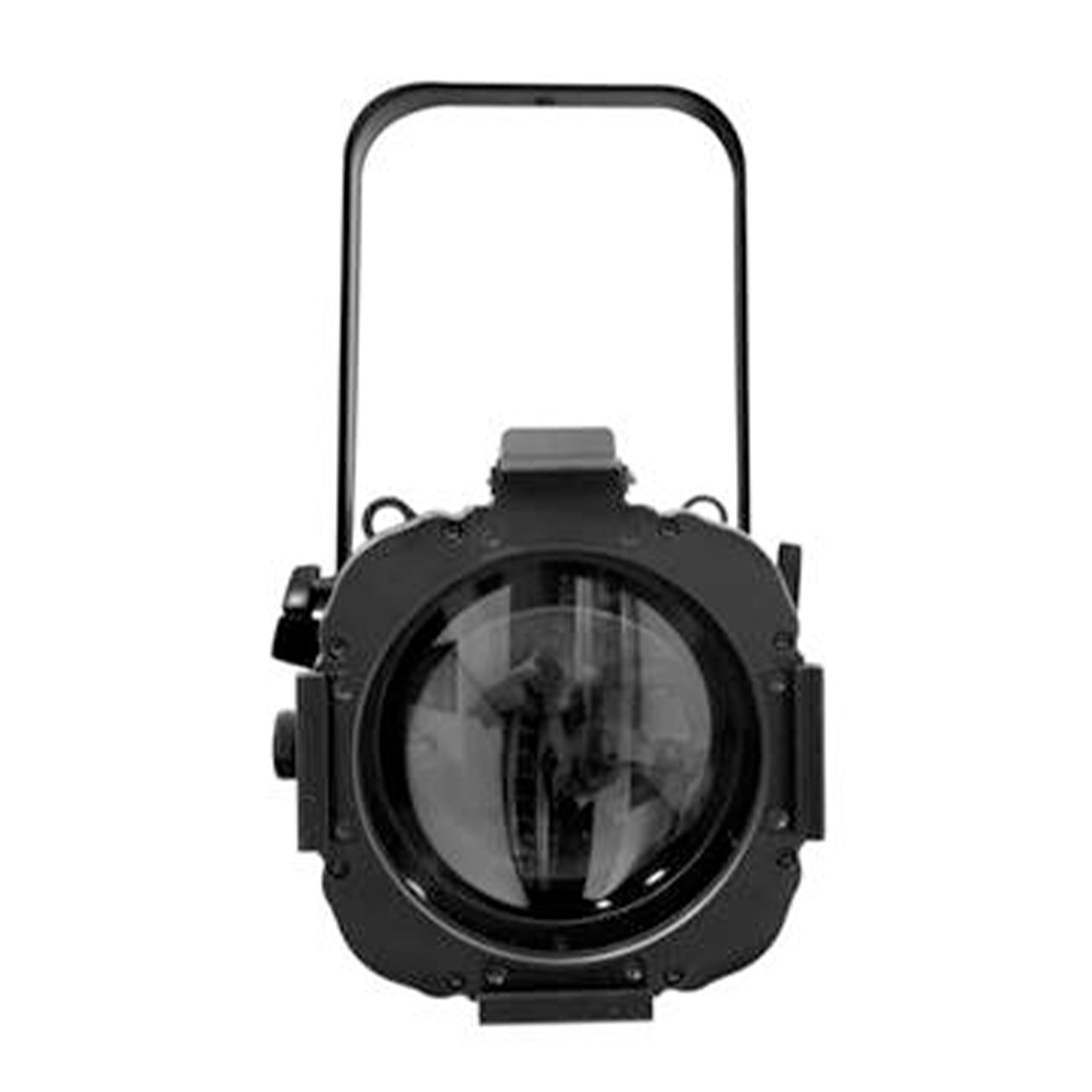

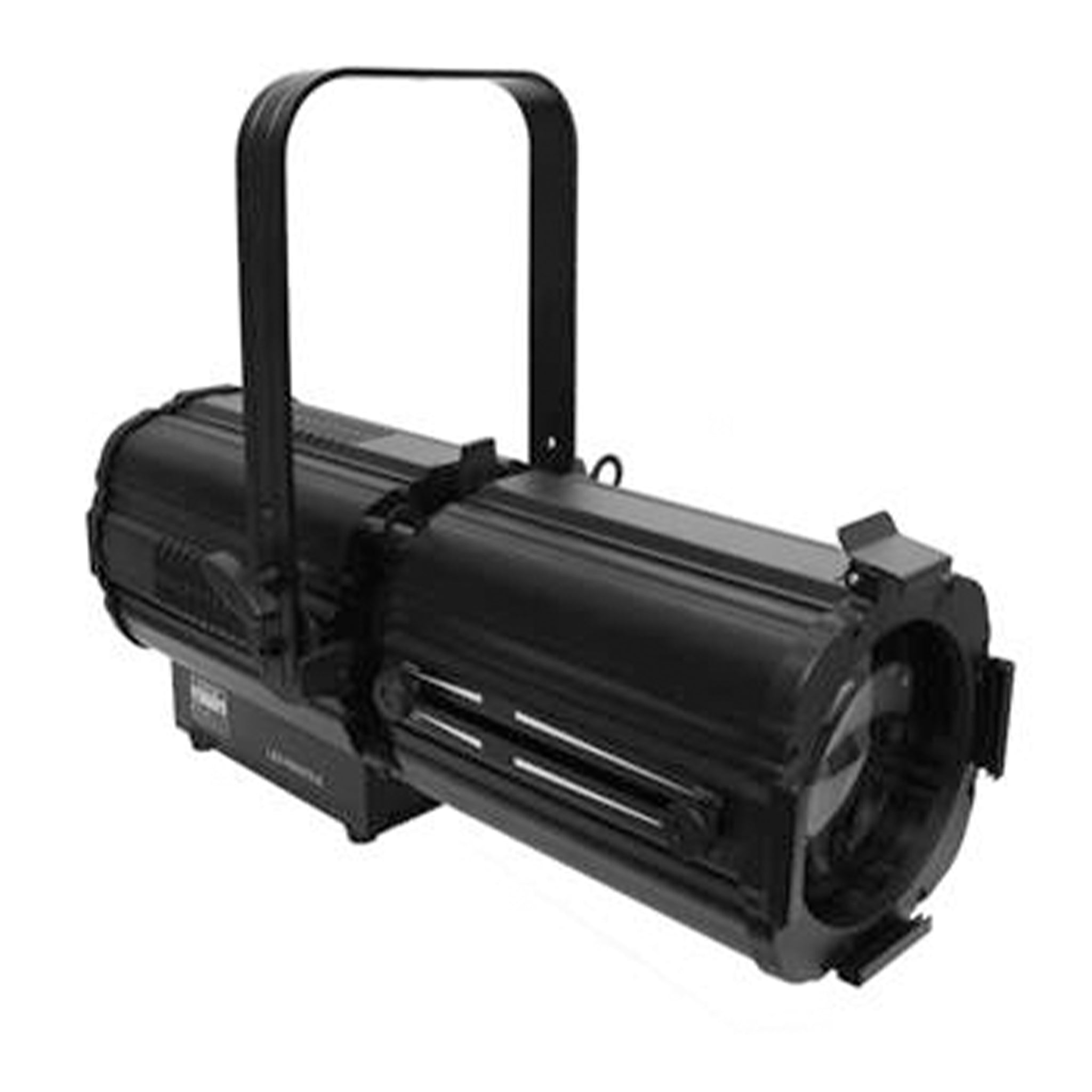

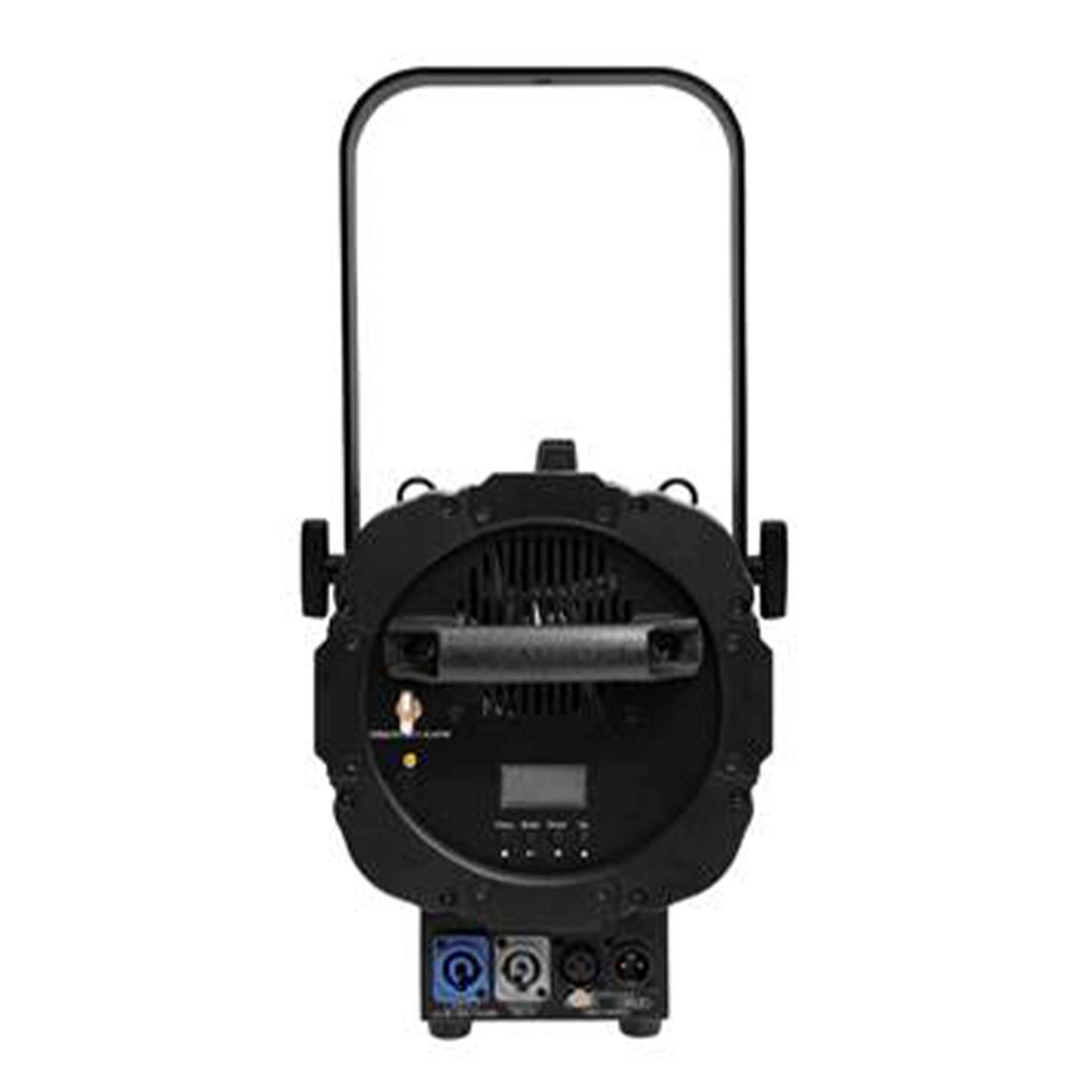

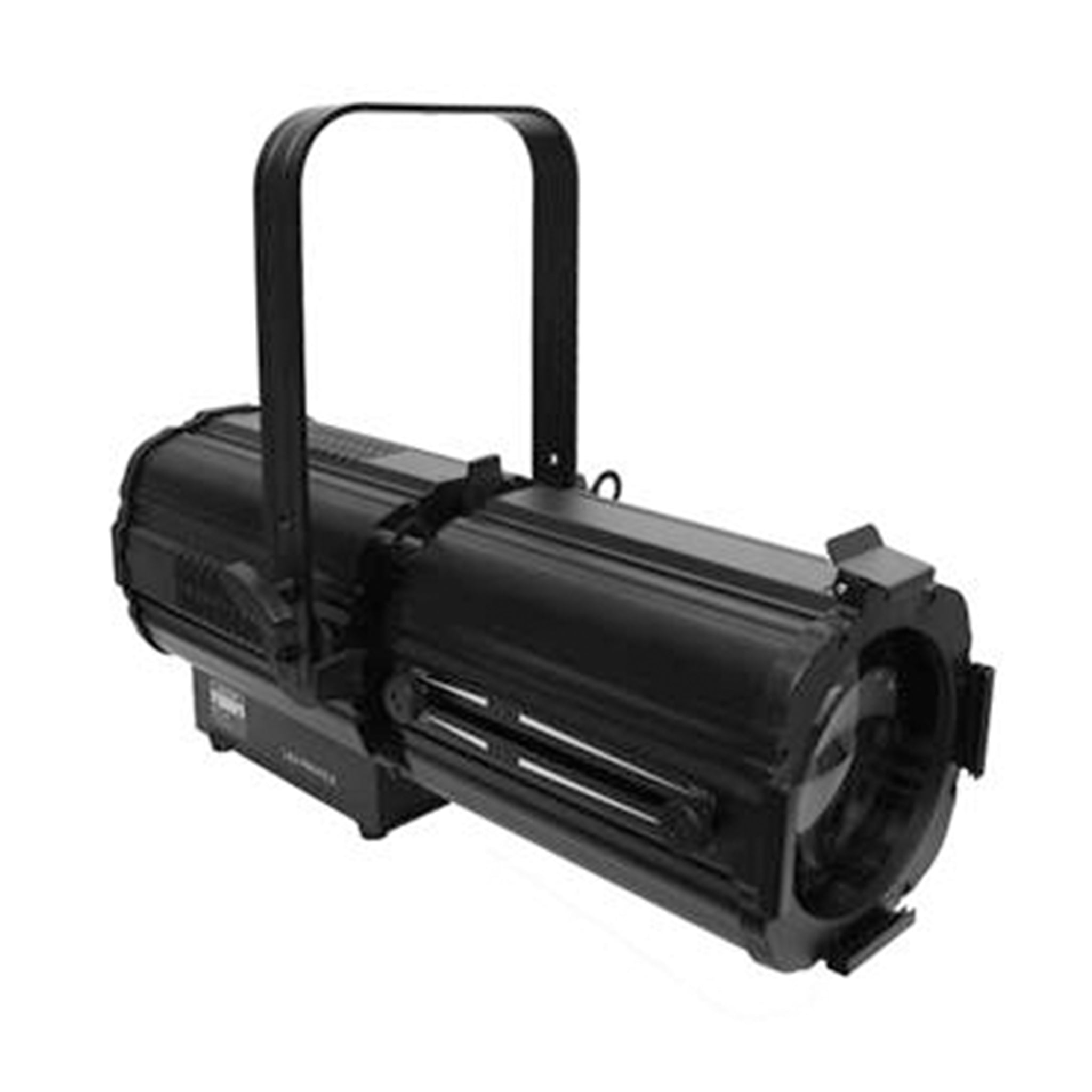

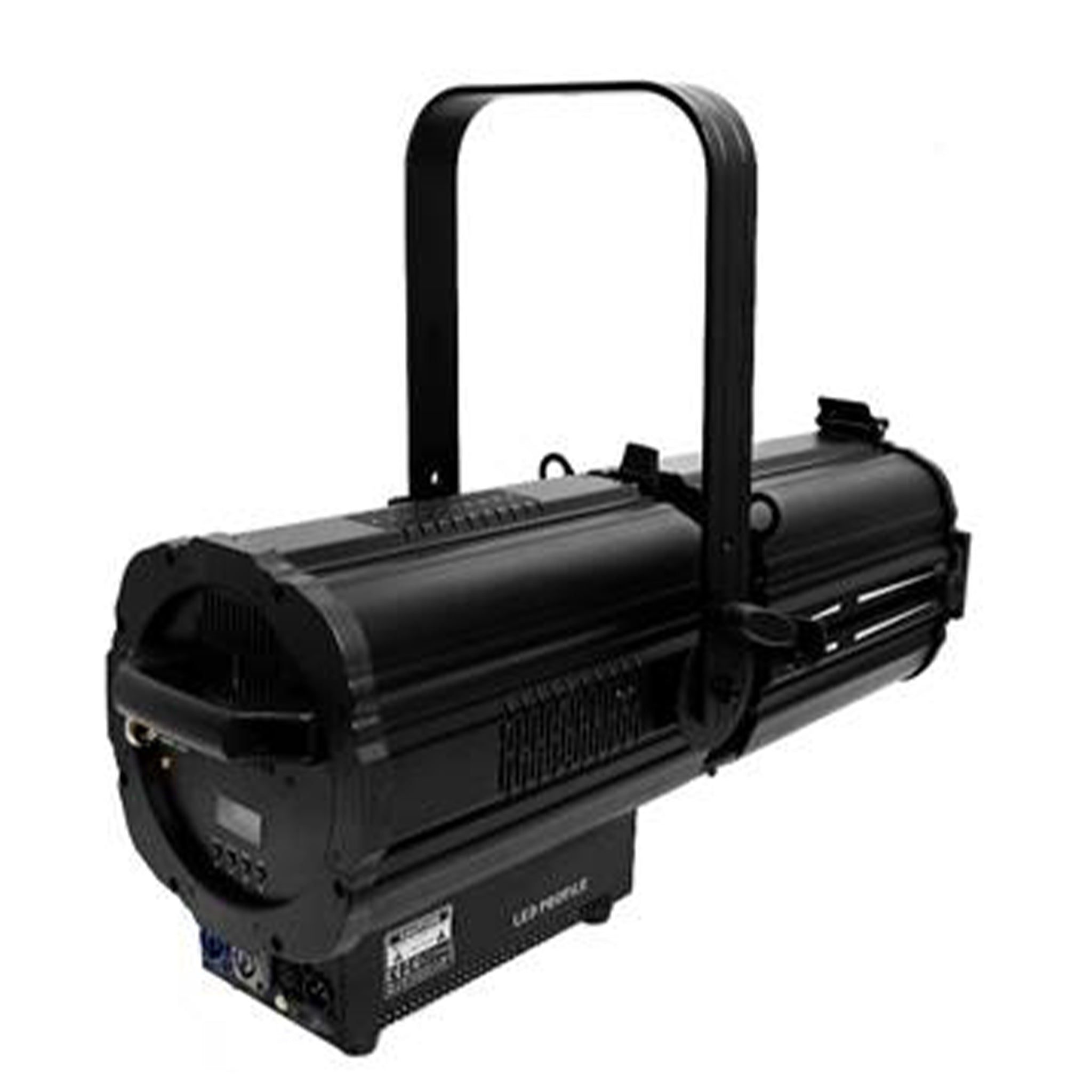

The RADIANT ZM400 is a newly developed high power zoom LED image and framing projector designed for long throw and HP and HD indoor applications. It is driven by a 400W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The RADIANT ZM400 rivals classic high power discharge projectors at much lower cost, power consumption and size.
The RADIANT ZM400 is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Liquid Cooling System
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Zoom facility enables better control on the size of the image
- DMX 512 control technology
- RDM
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 440W
- LED Source: Citizen COB 400W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index (CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current (mA): 6,200
- Lumens (Lm): 40,000
- Zoom Beam Angle: 17° - 50°, manually with 2 knobs for easy accurate operation
- Focus: Manually with 2 knobs for easy accurate operation
- Lenses: 2 to control zoom and focus
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: RDM, DMX, 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 4
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4 CH4: Dim Fine
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling: Liquid Cooling system
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 20 fixtures
- Housing: Extruded aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke. Universal mounting.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included

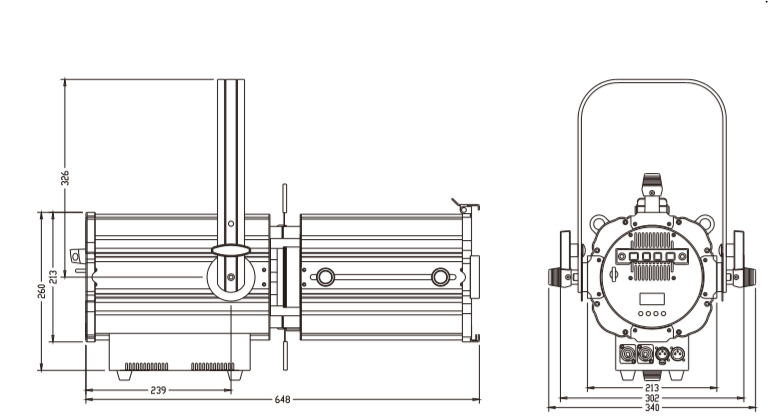

- Dimensions: See below.
- Weight: 14kgs (30.8lbs)
- Model: RZM-400
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Liquid Cooling System
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Zoom facility enables better control on the size of the image
- DMX 512 control technology
- RDM
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
TECHNICAL SPECIFICATIONS
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 440W
- LED Source: Citizen COB 400W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index (CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current (mA): 6,200
- Lumens (Lm): 40,000
- Zoom Beam Angle: 17° - 50°, manually with 2 knobs for easy accurate operation
- Focus: Manually with 2 knobs for easy accurate operation
- Lenses: 2 to control zoom and focus
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: RDM, DMX, 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 4
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4 CH4: Dim Fine
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling: Liquid Cooling system
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 20 fixtures
- Housing: Extruded aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke. Universal mounting.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included
- Dimensions: See below.
- Weight: 14kgs (30.8lbs)
- Model: RZM-400
DMX CHANNELS
PHOTOMETRIC DATA
MENUS AND DISPLAYS

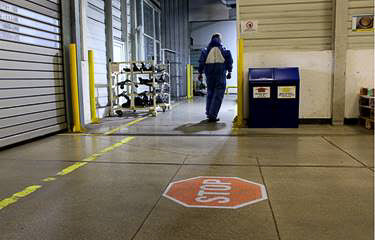

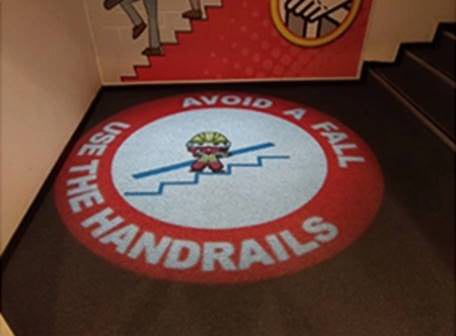

Industrial and business enterprises are increasingly aware of the opportunities and benefits brought by the projection of navigation, hazard and safety signs. Replacing painted safety labels or stickers because they wear off easily in heavy traffic, restoration is time consuming and its cost is high.
The RADIANT ZM400 is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
The RADIANT ZM400 projectors can be connected to a motion sensor or timer, and if necessary the projected image can be replaced or repositioned.

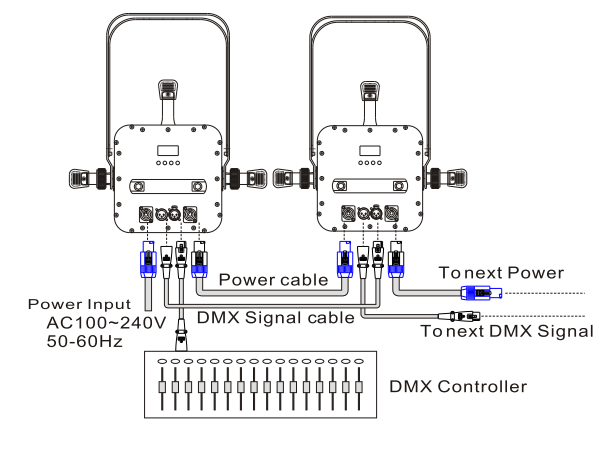

Thanks to the DMX512 technology, the RADIANT ZM400 can be programmed, if desired, producing dynamic effects of dimming and flashing. Multiple projectors can be linked, daisy-chained and programmed.
Due to continuous improvements, specifications and prices may change without prior notice
