Product Description

The BRILLIANT EFX ZP470 is a newly developed LED multi-image (rotating images, color changer, zoom, prism, atomization floating effect, dimming, strobe) special effects projector designed for short to medium throw outdoor use.

All the functions are controlled by a DMX 512 allowing maximum creativity and flexibility.

It is driven by a 400W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.

desc-img

The BRILLIANT EFX ZP470 rivals classic high power discharge projectors at much lower cost, power consumption and size.

The BRILLIANT EFX ZP470 is easy to install and operate and is light weight housed in a stylish and functional housing.

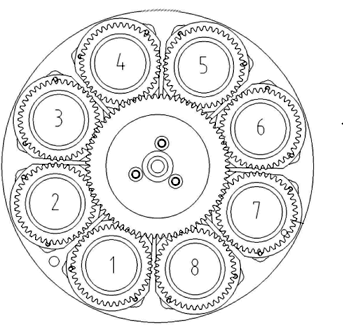

  • Gobo wheel: 7 rotating gobos plus open

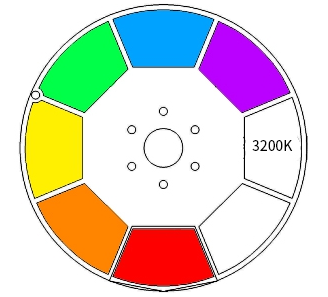

  • Color Wheel: 6 colors + 3200K plus white, semi-color effect
  • Motorized Prism: 4 facets prism
  • Motorized Atomization Floating Effect
  • Motorized zoom: 4° to 45° to cover from very narrow to very wide beam angles
  • Focus: Motorized
  • Dimming: Electronic, constantly variable 0-100%, 16-bit control
  • Shutter: Electronic, strobe and pulse effects, instant open and blackout
  • Power Supply: AC100V-260V, 50/60Hz
  • Auto Switching Power Supply, internal power supply.
  • Power Consumption: Maximum 470W
  • Power Connection: Power In (3 pins) /Power Out (3 pins)
  • Light Source: 400W LED Engine, White Color
  • Lumens: 49,000
  • Color Temperature: 8000K
  • LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
  • Motorized zoom 4° to 45°
  • Motorized Focus
  • DMX 512 control
  • Data Connection: 3 pin DMX In/DMX Out
  • DMX Channels: 9 DMX 512 channels
  • Control Mode: Standard: DMX, RDM, support radar sensing activation system

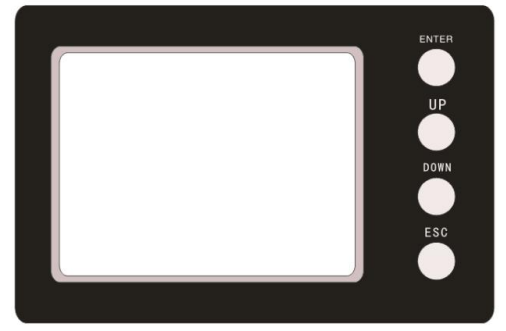

  • Display: LCD plus Press Button
  • Dimming: Smooth 0 – 100% electronic dimming
  • Strobe: 0-20Hz variable speed, pulse and random strobe
  • Motorized Prism: 4 facet prism
  • Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
  • Gobo Wheel: 7 rotating gobos plus 1 open.
  • Motorized Gobo wheel with atomization floating effect can be adjusted linearly and combined with the gobo after auto rotation to make a dynamic effect and the speed can be adjusted.
  • Color Wheel: 6 colors + 3200K plus white, semi-color effect
  • Thermal management system ensures long life of LEDs
  • Cooling System: 11 fans: 1 in the base for power supply, 4 in the fixture itself, 4 for the cooling radiator and 2 blower fans
  • Motors:9 super silent 16 bit stepper motors.
  • Housing: High Temperature resistant, anti-ultraviolet and anti-oxidant plastic alloy plus national standard die-casting
  • Housing Color: Black
  • IP Rating: IP65
  • Listing: CE, LVD, RoHS, EMC
  • Environment Temperatures: -15°C - 40°C (5°F - 104°F)
  • Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired..
  • Gobo Size: Outer Diameter: 23mm, Inner Diameter: 18mm. There is a small access panel on the top of the projector that is used for changing gobos.
  • Dimensions: 390x252x624mm (15.35x9.92x24.57 inch)
  • Weight: 22.5kgs (49.50 lbs.)
  • Replacement Fuse: 6A
  • Warranty: One year limited warranty
  • Model: BRL-EFX-ZP470
  • Solid State LED Lighting (SSL) Technology
  • COB (Chip-On-Board) White LED technology
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Multi-image projection
  • Rotating images
  • Color Changer
  • Motorized Prism
  • Motorized Atomization Floating Effect
  • Motorized zoom
  • Motorized focus
  • Dimming
  • Strobing
  • DMX 512
  • Various control modes
  • Innovative multi-purpose mounting yoke
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
tab-img
tab-img

DYANMIC EFFECTS

  • Gobo wheel: 7 rotating gobos plus open
  • Color Wheel: 6 colors + 3200K plus white, semi-color effect
  • Motorized Prism: 4 facets prism
  • Motorized Atomization Floating Effect
  • Motorized zoom: 4° to 45° to cover from very narrow to very wide beam angles
  • Focus: Motorized
  • Dimming: Electronic, constantly variable 0-100%, 16-bit control
  • Shutter: Electronic, strobe and pulse effects, instant open and blackout

TECHNICAL SPECIFICATIONS

  • Power Supply: AC100V-260V, 50/60Hz
  • Auto Switching Power Supply, internal power supply.
  • Power Consumption: Maximum 470W
  • Power Connection: Power In (3 pins) /Power Out (3 pins)
  • Light Source: 400W LED Engine, White Color
  • Lumens: 49,000
  • Color Temperature: 8000K
  • LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
  • Motorized zoom 4° to 45°
  • Motorized Focus
  • DMX 512 control
  • Data Connection: 3 pin DMX In/DMX Out
  • DMX Channels: 9 DMX 512 channels
  • Control Mode: Standard: DMX, RDM, support radar sensing activation system
  • Display: LCD plus Press Button
  • Dimming: Smooth 0 – 100% electronic dimming
  • Strobe: 0-20Hz variable speed, pulse and random strobe
  • Motorized Prism: 4 facet prism
  • Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
  • Gobo Wheel: 7 rotating gobos plus 1 open.
  • Motorized Gobo wheel with atomization floating effect can be adjusted linearly and combined with the gobo after auto rotation to make a dynamic effect and the speed can be adjusted.
  • Color Wheel: 6 colors + 3200K plus white, semi-color effect
  • Thermal management system ensures long life of LEDs
  • Cooling System: 11 fans: 1 in the base for power supply, 4 in the fixture itself, 4 for the cooling radiator and 2 blower fans
  • Motors:9 super silent 16 bit stepper motors.
  • Housing: High Temperature resistant, anti-ultraviolet and anti-oxidant plastic alloy plus national standard die-casting
  • Housing Color: Black
  • IP Rating: IP65
  • Listing: CE, LVD, RoHS, EMC
  • Environment Temperatures: -15°C - 40°C (5°F - 104°F)
  • Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired..
  • Gobo Size: Outer Diameter: 23mm, Inner Diameter: 18mm. There is a small access panel on the top of the projector that is used for changing gobos.
  • Dimensions: 390x252x624mm (15.35x9.92x24.57 inch)
  • Weight: 22.5kgs (49.50 lbs.)
  • Replacement Fuse: 6A
  • Warranty: One year limited warranty
  • Model: BRL-EFX-ZP470

FEATURES & BENEFITS

  • Solid State LED Lighting (SSL) Technology
  • COB (Chip-On-Board) White LED technology
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Multi-image projection
  • Rotating images
  • Color Changer
  • Motorized Prism
  • Motorized Atomization Floating Effect
  • Motorized zoom
  • Motorized focus
  • Dimming
  • Strobing
  • DMX 512
  • Various control modes
  • Innovative multi-purpose mounting yoke
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free

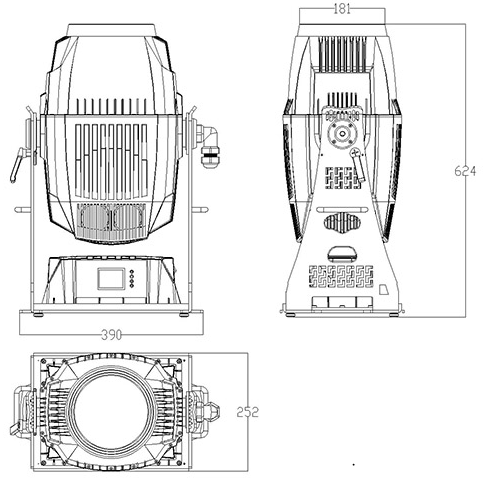

DIMENSIONS

tab-img

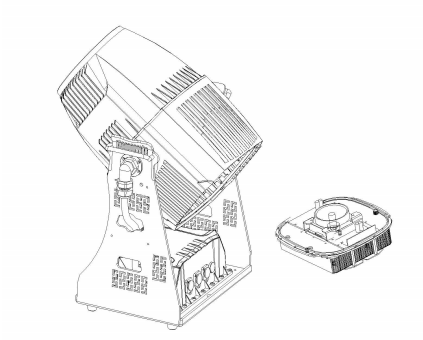

PROJECTOR OVERVIEW

tab-img
More Details
Applications
· Outdoors/Indoors · High Risers · City Beautification · Water Themes · Facades · Roofs · Advertising · Banks · Promotional Campaigns · Shops · Department Stores · New Product Launch · New Service Introduction · Mountains · Nightclubs · Restaurants · Movie Theaters · Theatres · Signs · Supermarkets · Car Dealerships · Arenas · Hotels · Casinos · Studios · Houses of Worship · High End Residential · Amusement/Theme Parks · Hills · Museums · Events · Trade Shows · Entertainment Facilities · Concerts · Signs · Billboards · Exhibitions· Parking Garage · Displays & Exhibits · Radio & TV Stations · Sports Facilities · And much more

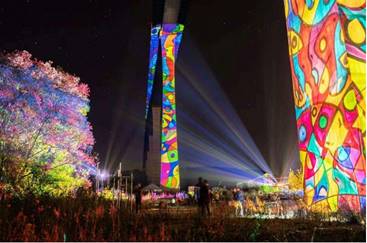

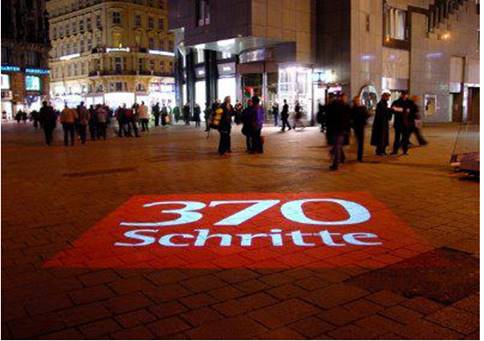

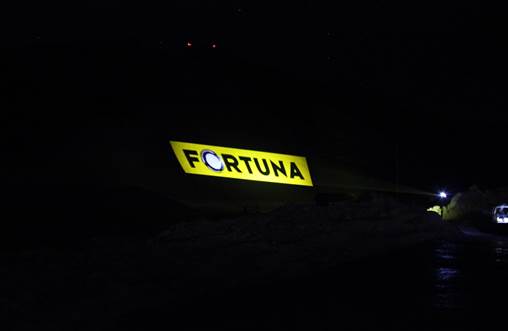

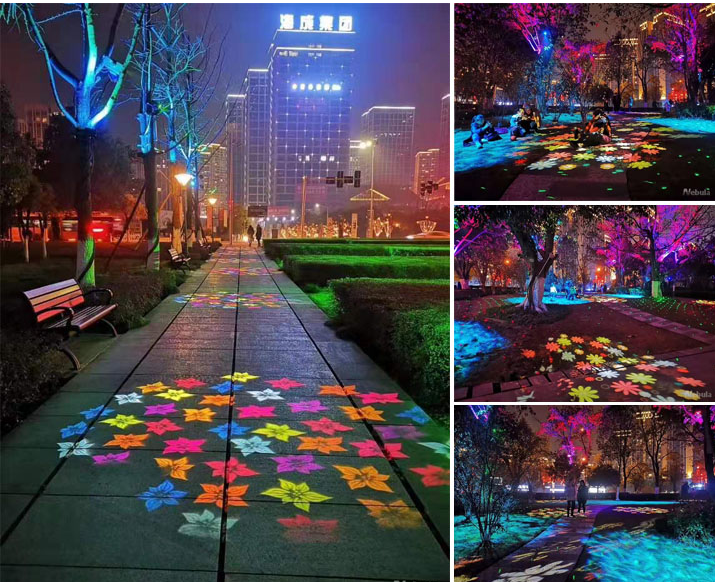

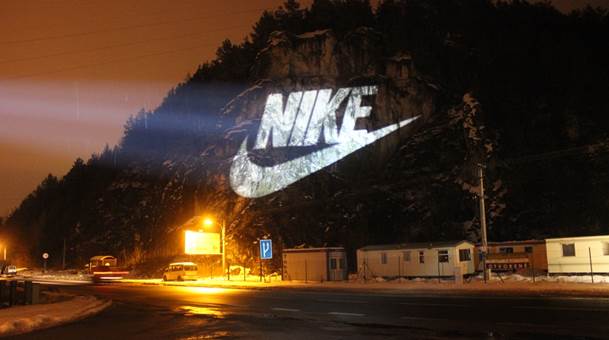

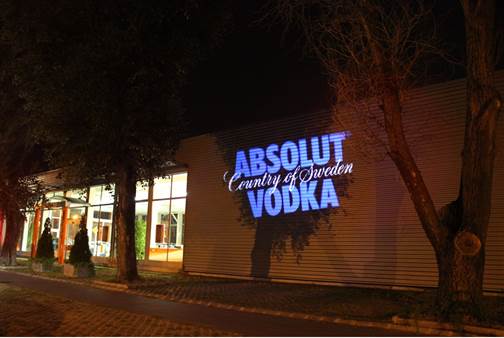

Marketing Examples

Due to continuous improvements, specifications and prices may change without prior notice
