The BRILLIANT EFX Z500 is a newly developed Super Power LED multi-image multi-effect (rotating images, color changer, zoom, prisms, dimming, strobe) special effects projector designed for long throw outdoor use.
All the functions are controlled by a DMX 512 allowing maximum creativity and flexibility.
It is driven by a 500W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The BRILLIANT EFX Z500 rivals classic high power discharge projectors at much lower cost, power consumption and size.
The BRILLIANT EFX Z500 is easy to install and operate and is light weight housed in a stylish and functional housing.
- Color wheel: 6 interchangeable colors plus open
- Gobo wheels: Two 6 interchangeable rotating gobos plus open, indexing, variable rotation. Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Zoom: Motorized 10° - 40° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet circular & 6 facet linear rotating prisms, prism rotation and indexing, independent control
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, 0-25Hz variable speed, pulse and random strobe, instant open and blackout
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Rotating and static images
- Color changer
- Motorized focus
- Motorized zoom
- Motorized multi facet prisms
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 650W
- Power Connection: PowerCON Power In/Power out
- Light Source: 500W High Power LED Engine, White Color
- Lumens: 50,000
- Color Temperature: 6500K
- LED Lifespan: >20,000 hours. (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: Zoom 10° - 40°
- Focus:. Electronic linear focusing.
- Zoom: Electronic
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 15 DMX 512 channels
- Control Mode: DMX, Auto, Sound, Program, Manual
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prisms: 4-facet circular & 6 facet linear rotating prisms, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobos Wheels Gobo: 2 rotating gobo wheels, every wheel is respectively with 6 interchangeable glass gobos plus open Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Color Changer: 6 dichroic colors plus open, Index / Bi-directional rotating rainbow effect
- Thermal management system ensures long life of LEDs
- Cooling: Fan plus water cooling system
- Housing: Extruded Aluminum
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -25°C - 40°C (-13°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired.
- Gobo Size: Outer Diameter: 25mm, Inner Diameter: 17mm
- Dimensions: 366 x 638 x 423mm. 669 x 313 x 409 mm. Please see below.
- Weight: 22 kgs (48.4 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z500
The projector features 4 freely control modes including DMX, auto, sound, program and manual. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.
Text Column 2
DYNAMIC EFFECTS
- Color wheel: 6 interchangeable colors plus open
- Gobo wheels: Two 6 interchangeable rotating gobos plus open, indexing, variable rotation. Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Zoom: Motorized 10° - 40° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet circular & 6 facet linear rotating prisms, prism rotation and indexing, independent control
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, 0-25Hz variable speed, pulse and random strobe, instant open and blackout
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Rotating and static images
- Color changer
- Motorized focus
- Motorized zoom
- Motorized multi facet prisms
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
TECHNICAL SPECIFICATIONS
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 650W
- Power Connection: PowerCON Power In/Power out
- Light Source: 500W High Power LED Engine, White Color
- Lumens: 50,000
- Color Temperature: 6500K
- LED Lifespan: >20,000 hours. (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: Zoom 10° - 40°
- Focus:. Electronic linear focusing.
- Zoom: Electronic
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 15 DMX 512 channels
- Control Mode: DMX, Auto, Sound, Program, Manual
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prisms: 4-facet circular & 6 facet linear rotating prisms, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobos Wheels Gobo: 2 rotating gobo wheels, every wheel is respectively with 6 interchangeable glass gobos plus open Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Color Changer: 6 dichroic colors plus open, Index / Bi-directional rotating rainbow effect
- Thermal management system ensures long life of LEDs
- Cooling: Fan plus water cooling system
- Housing: Extruded Aluminum
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -25°C - 40°C (-13°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired.
- Gobo Size: Outer Diameter: 25mm, Inner Diameter: 17mm
- Dimensions: 366 x 638 x 423mm. 669 x 313 x 409 mm. Please see below.
- Weight: 22 kgs (48.4 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z500

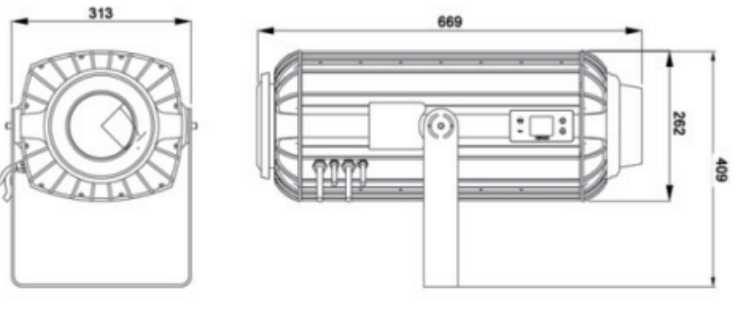

DIMENSIONS
CONTROL
The projector features 4 freely control modes including DMX, auto, sound, program and manual. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.
Text Column 2
Due to continuous improvements, specifications and prices may change without prior notice
