Product Description
Aptly named, the MEGA TITAN COLOR YXL is a 2018 newly developed high power SSL automated moving head searchlight using 1.5KW CREE LED chip and very narrow beam optics producing a single beam and generating RGBW color mixing. On-board or remote DMX 512 signal gives direct access to all functions including electronic control over pan, tilt, speed, dimmer, strobe, chasing and blackout effects.
The base unit features brake-locking wheels and screw jacks for leveling and stabilizing the unit and a special mounting plate for permanent applications.
Thanks to the high IP ratings, the MEGA TITAN COLOR YXL is ideal for outdoors for permanent, semi-permanent and temporary applications in entertainment, architectural, display, industrial and commercial installations.
- This most powerful LED projector is targeted to provide the best long throw illumination effect for the next generation of SSL exterior architectural lighting applications
- Automated moving head technology enables smooth pan and tilt movement
- Thanks to the very narrow brilliant beam it can be seen from long distances
- Rivals legacy xenon searchlights on power consumption, light efficiency, lamp life, cost, durability, longevity and reliability
- With proprietary thermal management system and optics design, it offers superior performance for outdoor lighting areas
- Uses CREE high power LED as lighting source, with high brightness, high color temperature, high thermal conductivity, good heat-radiation, virtually minimal light decay, pure light, no ghosting, stable performance and quality advantages
- Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power
- Light weight for safe use and installation
- Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead and other pollution elements
- High color rendering index to show the physical color rendering more real
- Powered by constant current and voltage
- Using a special surface treatment process
- New design with emphasis on appearance
- Virtually no moving parts result in higher reliability and durability
- Simple installation
- Easy mounting and positioning
- Wide range of applications
- The driver/power supply is separated from the head with light source results in superior performance, reliability and durability
- Special for outdoor use
- High Brightness
- Energy saving
- Long lifetime
- Compact size
- RGBW color mixing system
- Power supply：220V - 240V, 50 - 60Hz, 7.5A, others available too.
- Power consumption (Max): 1650w
- Light source: CREE RGBW LED
- Brightness: >150,000 lumens
- Beam Angle: VNB 3° -6°
- Lamp Life Span: >60,000 hours
- Control Mode: DMX512, Master/Slave and self-running automatic
- DMX Channels: Please see below
- Display: LCD (menu)
- Strobe 4 – 15 Hz
- Dimming: Electronic 0-100%
- Pan: 360°
- Tilt: 240°
- IP rating: IP55
- Housing: Extruded aluminum head and heat-resistant plastic from patented waterproof and cool-down structure
- Mounting: Universal
- Cooling system: finned head and high efficiency silent fans
- Working Temperature : -40℃ - 50℃ (-40°F – 122°F)
- Dimensions: 720 X 550 X 660mm (28.35” X 21.65” X 26”)
- Net Weight: 38kgs (83.4lbs)
- Gross Weight: 45kgs (99lbs)
- Listing: CE
- Model: YXL-2698
FEATURES
- This most powerful LED projector is targeted to provide the best long throw illumination effect for the next generation of SSL exterior architectural lighting applications
- Automated moving head technology enables smooth pan and tilt movement
- Thanks to the very narrow brilliant beam it can be seen from long distances
- Rivals legacy xenon searchlights on power consumption, light efficiency, lamp life, cost, durability, longevity and reliability
- With proprietary thermal management system and optics design, it offers superior performance for outdoor lighting areas
- Uses CREE high power LED as lighting source, with high brightness, high color temperature, high thermal conductivity, good heat-radiation, virtually minimal light decay, pure light, no ghosting, stable performance and quality advantages
- Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power
- Light weight for safe use and installation
- Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead and other pollution elements
- High color rendering index to show the physical color rendering more real
- Powered by constant current and voltage
- Using a special surface treatment process
- New design with emphasis on appearance
- Virtually no moving parts result in higher reliability and durability
- Simple installation
- Easy mounting and positioning
- Wide range of applications
- The driver/power supply is separated from the head with light source results in superior performance, reliability and durability
- Special for outdoor use
- High Brightness
- Energy saving
- Long lifetime
- Compact size
- RGBW color mixing system
TECHNICAL SPECIFICATIONS
- Power supply：220V - 240V, 50 - 60Hz, 7.5A, others available too.
- Power consumption (Max): 1650w
- Light source: CREE RGBW LED
- Brightness: >150,000 lumens
- Beam Angle: VNB 3° -6°
- Lamp Life Span: >60,000 hours
- Control Mode: DMX512, Master/Slave and self-running automatic
- DMX Channels: Please see below
- Display: LCD (menu)
- Strobe 4 – 15 Hz
- Dimming: Electronic 0-100%
- Pan: 360°
- Tilt: 240°
- IP rating: IP55
- Housing: Extruded aluminum head and heat-resistant plastic from patented waterproof and cool-down structure
- Mounting: Universal
- Cooling system: finned head and high efficiency silent fans
- Working Temperature : -40℃ - 50℃ (-40°F – 122°F)
- Dimensions: 720 X 550 X 660mm (28.35” X 21.65” X 26”)
- Net Weight: 38kgs (83.4lbs)
- Gross Weight: 45kgs (99lbs)
- Listing: CE
- Model: YXL-2698
DMX CHANNELS
Applications
- Towers
- High Risers
- Power Plants
- Skyscrapers
- Stadiums
- Arenas
- Hotels
- Casinos
- Bridges
- Monuments
- Facades
- Buildings
- Amusement Rides
- Houses of Worship
- Large Retail Exteriors
- Piers
- Themed attractions
- Amusement Parks
- Trees
- Sports Facilities
- Borders
- Coastal Defense
- Prisons
- Law Enforcement
- Big Squares
- Hills
- Silos
- Commercial & Industrial Sites

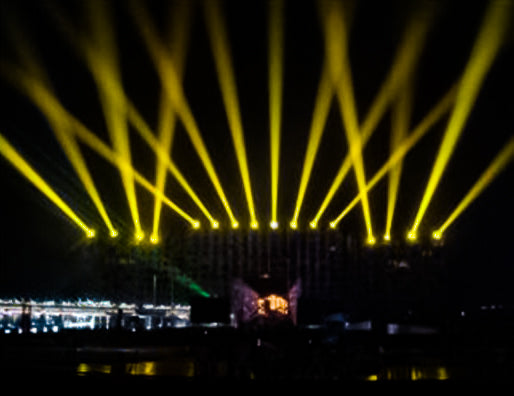

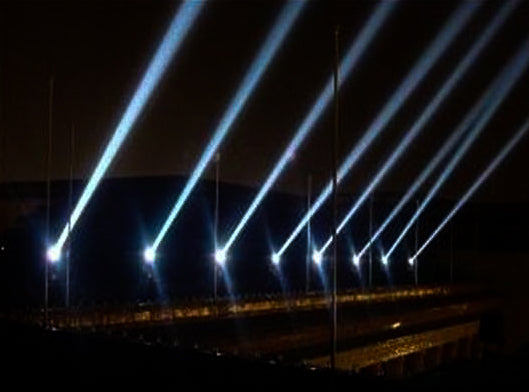

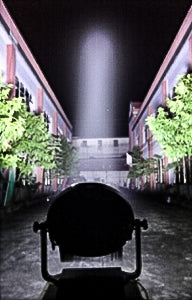

Marketing Examples
When you want to come up with something more dramatic
When you want to get a “wow factor”
Create new looks as if wrapped up in a geometric pattern of glittering, powerful beams of light moving in perfect coordination
Programming synchronized and non-synchronized chasing patterns via DMX makes the light beams even more dramatic
Performance, Reliability and Durability are great
Environmentally friendly
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
