Product Description

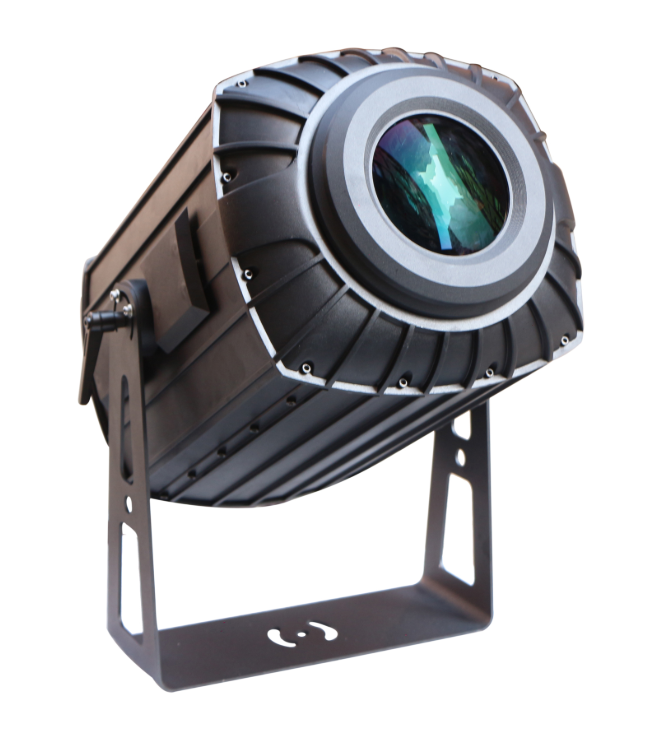

The BRILLIANT EFX ZR300P is a newly developed Super Power LED special effects projector (images, water waves, color changer, zoom, prism, dimming and strobe) designed for long throw outdoor use.

All the functions are controlled by a DMX 512 allowing maximum creativity and flexibility.

It is driven by a 300W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.

desc-img

The BRILLIANT EFX ZR300P rivals classic high power discharge projectors at much lower cost, power consumption and size.

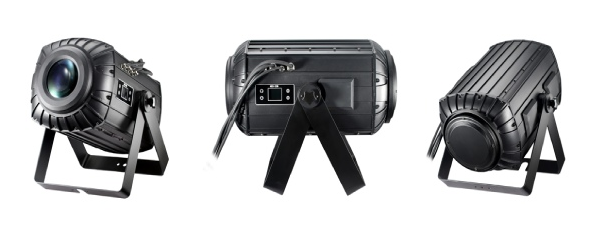

The BRILLIANT EFX ZR300P is easy to install and operate and is light weight housed in a stylish and functional housing.

  • Color wheel: 6 interchangeable colors plus open, full and half color function, two directional rainbow effects.
  • Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
  • Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
  • Zoom: Motorized 11° - 46° (Great range from narrow to wide)
  • Focus: Motorized
  • Prism: 4-facet circular rotating prism, independent control
  • Animation Wheels: 2 Motorized Water Ripple, variable, two directional reciprocating rotation
  • Dimming: Electronic, constantly variable 0-100%, 16-bit control
  • Shutter: Electronic, strobe and pulse effects, instant open and blackout
  • Solid State LED Lighting (SSL) Technology
  • COB (Chip-On-Board) White LED technology
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Rotating gobos
  • Water Wave projection
  • Color changer
  • Motorized zoom
  • Multi facet prisms
  • Dimming
  • Strobing
  • DMX 512
  • Various control modes
  • Innovative multi-purpose mounting yoke
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free
  • Power Supply: AC100V-260V, 50/60Hz
  • Auto Switching Power Supply, internal power supply.
  • Power Consumption: Maximum 400W
  • Power Connection: PowerCON Power In/Power out
  • Light Source: 300W High Power LED Engine, White Color
  • Lumens: 39,000
  • Color Temperature: 6500K
  • LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).

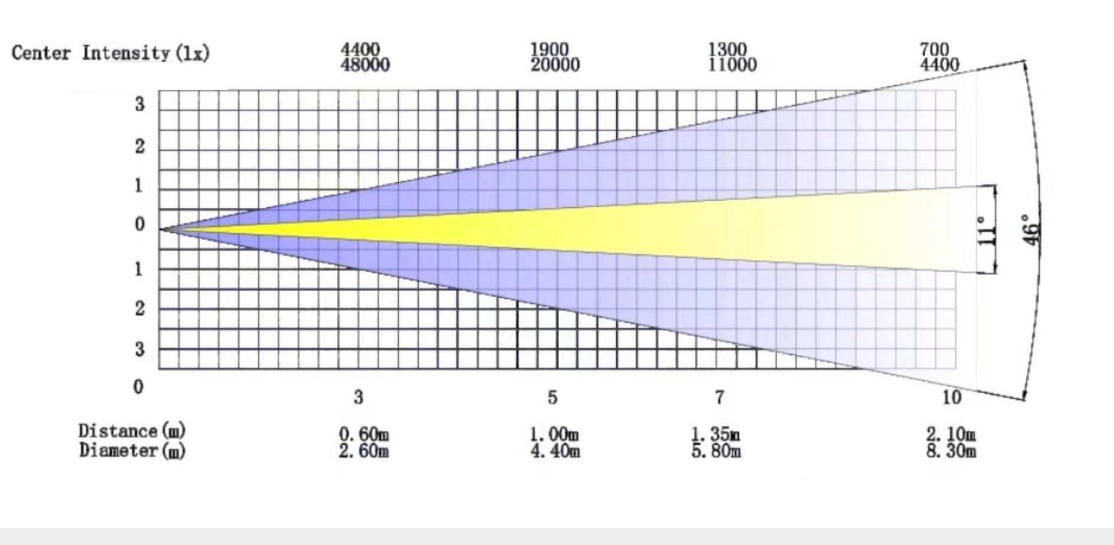

  • Projection Angles: 11° - 46°
  • Focus:. Electronic linear focusing, each effect within 5 meters can be clearly adjusted; all patterns can achieve linear infinity zoom
  • Zoom: Electronic
  • DMX 512 control
  • Data Connection: 3 pin DMX In/DMX Out
  • DMX Channels:12 DMX 512 channels
  • Control Mode: DMX, Auto, Sound, Program
  • Display: Full Color 180° Reversible LCD
  • Dimming: Smooth 0 – 100% electronic dimming
  • Strobe: 0-25Hz variable speed, pulse and random strobe
  • Prism: 4-facet circular rotating prisms, independent control
  • Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.

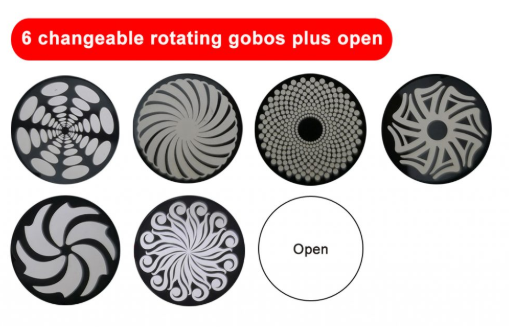

  • Rotating Gobo Wheel with 6 interchangeable glass gobos plus open. Index, shake and two directional rotation.

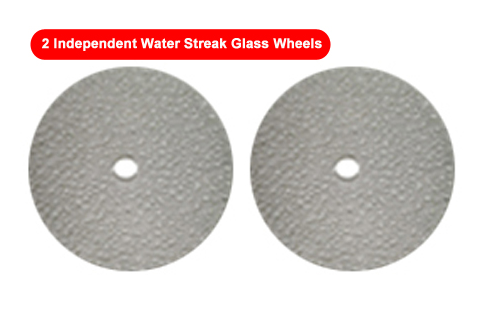

  • Water Ripple Effect: 2 independent Water Ripple glass wheels, two directional reciprocating rotation

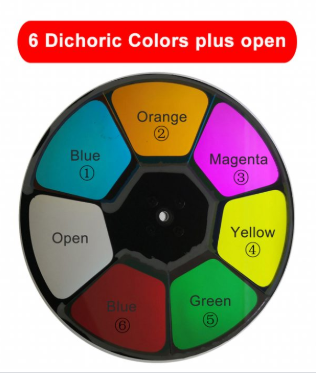

  • Color Changer: 1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects.
  • Thermal management system ensures long life of LEDs
  • Cooling: Fan plus water cooling system
  • Motors: 7 stepper motors.
  • Housing: Extruded Aluminum
  • Housing Color: Black
  • IP Rating: IP65
  • Listing: CE, LVD, RoHS, EMC
  • Environment Temperatures: -15°C - 40°C (5°F - 104°F)

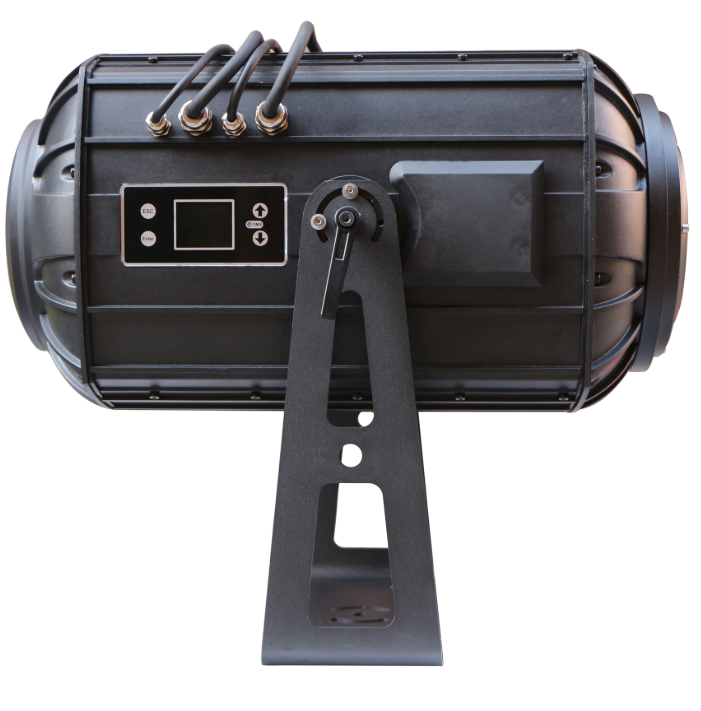

  • Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired.
  • Gobo Size: Outer Diameter: 27.8mm, Inner Diameter: 22.5mm

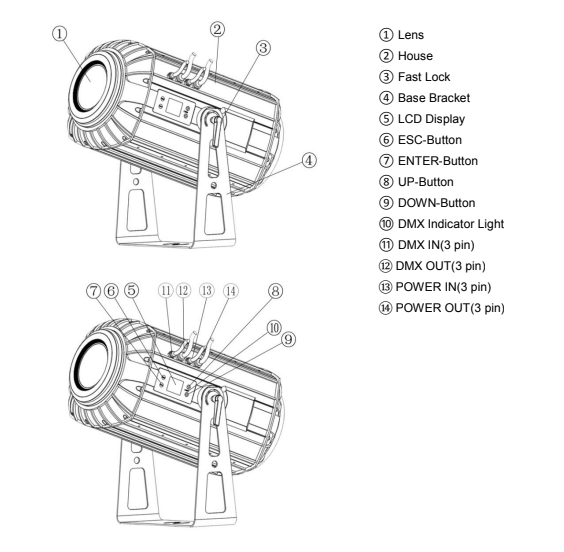

  • Dimensions: 502 x 313 x 423mm. (19.76” x 12.32” x 16.65”). Please see below.
  • Weight: 17.85 kgs (39.27 lbs)
  • Warranty: One year limited warranty
  • Model: BRL-EFX-ZR300P
tab-img
  • CH1 DIMMER
  • CH2 STROBE
  • CH3 COLOR WHEEL
  • CH4 WATER WHEEL 1
  • CH5 WATER WHEEL 2
  • CH6 GOBO WHEEL
  • CH7 GOBO ROTATION
  • CH8 GOBO ROTATION FINE
  • CH9 PRISM
  • CH10 ZOOM
  • CH11 FOCUS
  • CH12 WATER WHEEL 1 & 2 EXTRA
  • CH13 FUNCTION

The projector features 4 freely control modes including DMX, auto, sound and program. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.

DYNAMIC EFFECTS

  • Color wheel: 6 interchangeable colors plus open, full and half color function, two directional rainbow effects.
  • Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
  • Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
  • Zoom: Motorized 11° - 46° (Great range from narrow to wide)
  • Focus: Motorized
  • Prism: 4-facet circular rotating prism, independent control
  • Animation Wheels: 2 Motorized Water Ripple, variable, two directional reciprocating rotation
  • Dimming: Electronic, constantly variable 0-100%, 16-bit control
  • Shutter: Electronic, strobe and pulse effects, instant open and blackout

FEATURES

  • Solid State LED Lighting (SSL) Technology
  • COB (Chip-On-Board) White LED technology
  • Rivals and replaces HID and halogen lamps with a fraction of power consumption
  • Outdoor and Indoor use
  • Rotating gobos
  • Water Wave projection
  • Color changer
  • Motorized zoom
  • Multi facet prisms
  • Dimming
  • Strobing
  • DMX 512
  • Various control modes
  • Innovative multi-purpose mounting yoke
  • Long life LED light source requires no replacement during the life of the projector
  • Compact and lightweight
  • Enables you to create the look you want, and change it easily and quickly
  • Very user friendly, very easy to use
  • Stunning brightness
  • Extremely accurate focus
  • Elegant and compact design
  • Low running cost
  • Energy efficiency
  • No IR and no UV
  • No Mercury
  • Virtually maintenance free

TECHNICAL SPECIFICATIONS

  • Power Supply: AC100V-260V, 50/60Hz
  • Auto Switching Power Supply, internal power supply.
  • Power Consumption: Maximum 400W
  • Power Connection: PowerCON Power In/Power out
  • Light Source: 300W High Power LED Engine, White Color
  • Lumens: 39,000
  • Color Temperature: 6500K
  • LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
  • Projection Angles: 11° - 46°
  • Focus:. Electronic linear focusing, each effect within 5 meters can be clearly adjusted; all patterns can achieve linear infinity zoom
  • Zoom: Electronic
  • DMX 512 control
  • Data Connection: 3 pin DMX In/DMX Out
  • DMX Channels:12 DMX 512 channels
  • Control Mode: DMX, Auto, Sound, Program
  • Display: Full Color 180° Reversible LCD
  • Dimming: Smooth 0 – 100% electronic dimming
  • Strobe: 0-25Hz variable speed, pulse and random strobe
  • Prism: 4-facet circular rotating prisms, independent control
  • Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
  • Rotating Gobo Wheel with 6 interchangeable glass gobos plus open. Index, shake and two directional rotation.
  • Water Ripple Effect: 2 independent Water Ripple glass wheels, two directional reciprocating rotation
  • Color Changer: 1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects.
  • Thermal management system ensures long life of LEDs
  • Cooling: Fan plus water cooling system
  • Motors: 7 stepper motors.
  • Housing: Extruded Aluminum
  • Housing Color: Black
  • IP Rating: IP65
  • Listing: CE, LVD, RoHS, EMC
  • Environment Temperatures: -15°C - 40°C (5°F - 104°F)
  • Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired.
  • Gobo Size: Outer Diameter: 27.8mm, Inner Diameter: 22.5mm
  • Dimensions: 502 x 313 x 423mm. (19.76” x 12.32” x 16.65”). Please see below.
  • Weight: 17.85 kgs (39.27 lbs)
  • Warranty: One year limited warranty
  • Model: BRL-EFX-ZR300P

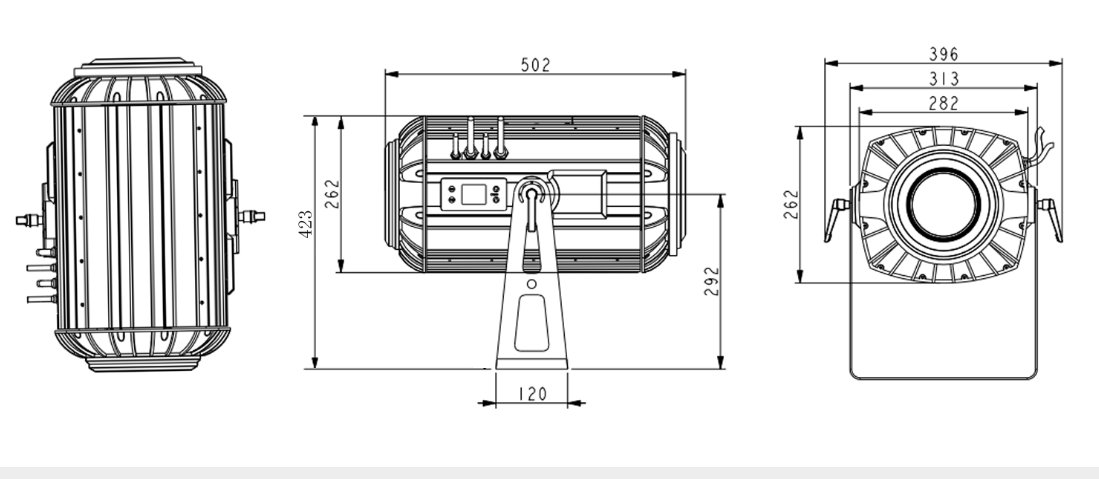

DIMENSIONS

tab-img

DMX CHANNELS

  • CH1 DIMMER
  • CH2 STROBE
  • CH3 COLOR WHEEL
  • CH4 WATER WHEEL 1
  • CH5 WATER WHEEL 2
  • CH6 GOBO WHEEL
  • CH7 GOBO ROTATION
  • CH8 GOBO ROTATION FINE
  • CH9 PRISM
  • CH10 ZOOM
  • CH11 FOCUS
  • CH12 WATER WHEEL 1 & 2 EXTRA
  • CH13 FUNCTION

CONTROL

The projector features 4 freely control modes including DMX, auto, sound and program. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.

More Details
Applications
· Outdoors/Indoors · High Risers · City Beautification · Water Themes · Facades · Roofs · Advertising · Banks · Promotional Campaigns · Shops · Department Stores · New Product Launch · New Service Introduction · Mountains · Nightclubs · Restaurants · Movie Theaters · Theatres · Signs · Supermarkets · Car Dealerships · Arenas · Hotels · Casinos · Studios · Houses of Worship · High End Residential · Amusement/Theme Parks · Hills · Museums · Events · Trade Shows · Entertainment Facilities · Concerts · Signs · Billboards · Exhibitions· Parking Garage · Displays & Exhibits · Radio & TV Stations · Sports Facilities · And much more

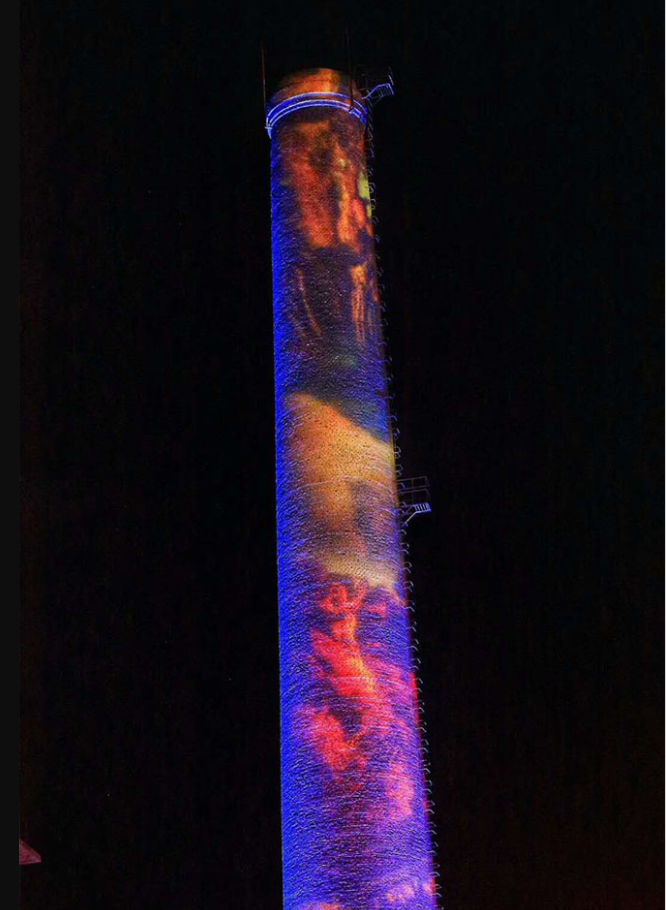

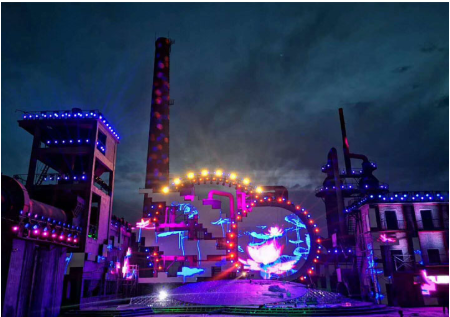

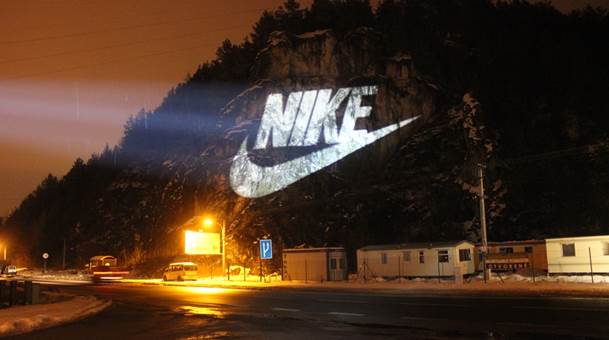

Marketing Examples

Due to continuous improvements, specifications and prices may change without prior notice
